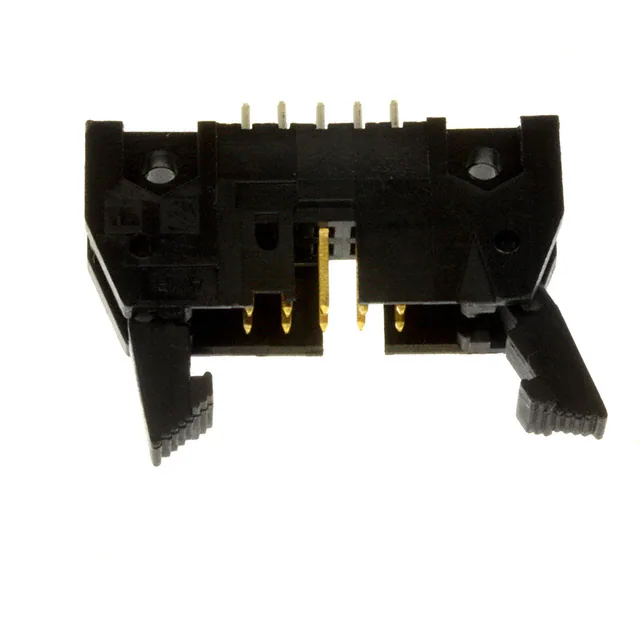

AHE10B
AHE10B
AHE10B
Favorite Products
AHE10B
AHE10B
CONN HEADER VERT 10POS 2.54MM
5499160-4.pdf
3,076
3,076 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Termination
Solder
Row Spacing - Mating
0.100" (2.54mm)
Connector Type
Header
Insulation Height
0.549" (13.94mm)
Material Flammability Rating
UL94 V-0
Contact Material
-
Mated Stacking Heights
-
Contact Length - Mating
0.240" (6.10mm)
Ingress Protection
-
Insulation Color
Black
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Operating Temperature
-55°C ~ 105°C
Current Rating (Amps)
1A
Series
AMP-Latch
Style
Board to Cable/Wire
Base Product Number
5499160
Contact Type
Male Pin
Voltage Rating
-
Product Status
Active
Pitch - Mating
0.100" (2.54mm)
Mounting Type
Through Hole
Contact Length - Post
0.110" (2.79mm)
Contact Finish - Mating
Gold or Gold-Palladium
Package
Bulk
Number of Positions
10
Overall Contact Length
0.639" (16.23mm)
Contact Shape
Square
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Features
Keying Slot, Mounting Flange
Contact Finish Thickness - Post
100.0µin (2.54µm)
Number of Rows
2
Fastening Type
Latch Lock/Eject Hooks, Short
Insulation Material
-
Mfr
TE Connectivity AMP Connectors
Contact Finish - Post
Tin
