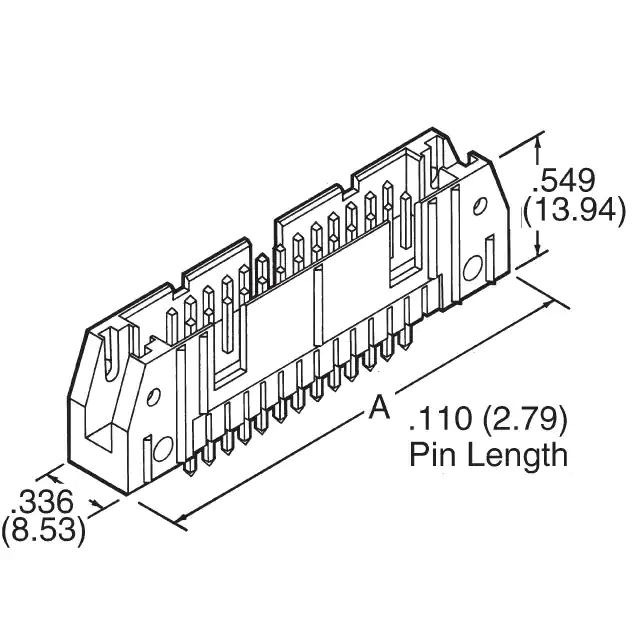

AHA64B
AHA64B
AHA64B
AHA64B
Favorite Products
AHA64B
AHA64B
CONN HEADER VERT 64POS 2.54MM
1658694-8.pdf
821
821 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Type
Male Pin
Series
AMP-Latch
Mounting Type
Through Hole
Current Rating (Amps)
1A per Contact
Product Status
Active
Insulation Material
-
Style
Board to Cable/Wire
Contact Length - Post
0.174" (4.42mm)
Contact Material
Phosphor Bronze
Mfr
TE Connectivity AMP Connectors
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Mating
Gold or Gold-Palladium
Contact Finish - Post
Tin
Operating Temperature
-65°C ~ 105°C
Connector Type
Header
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
0.240" (6.10mm)
Contact Finish Thickness - Post
100.0µin (2.54µm)
Base Product Number
1658694
Features
Keying Slot, Mounting Flange
Ingress Protection
-
Contact Shape
Square
Package
Bulk
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Applications
-
Pitch - Mating
0.100" (2.54mm)
Number of Positions
64
Fastening Type
Push-Pull
Overall Contact Length
0.703" (17.86mm)
Insulation Height
0.549" (13.94mm)
Voltage Rating
-
Number of Rows
2
Number of Positions Loaded
All
Termination
Press-Fit, Solder
Mated Stacking Heights
-
