AE11076
AE11076
AE11076
AE11076
Favorite Products
AE11076
AE11076
Assmann WSW Components

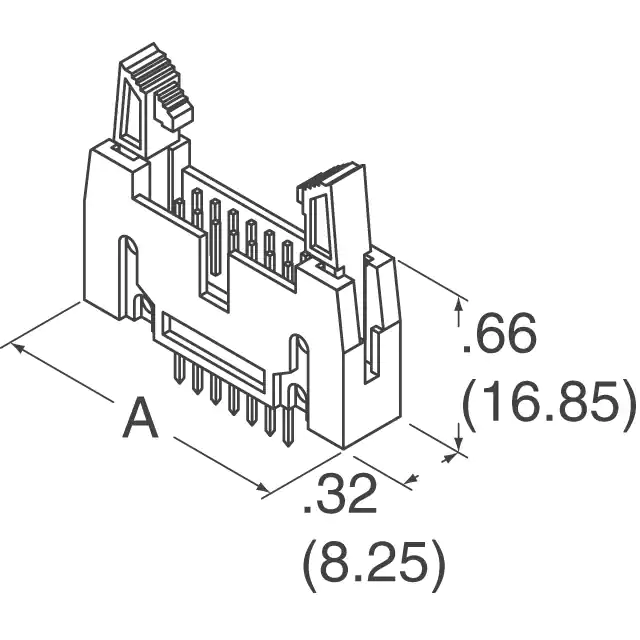

CONN HEADER VERT 14POS 2.54MM
ASS_2310_CO.pdf
871
871 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mounting Type
Through Hole
Contact Type
Male Pin
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish Thickness - Post
-
Contact Length - Post
0.130" (3.30mm)
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Series
-
Number of Positions
14
Contact Material
Brass
Voltage Rating
-
Applications
-
Package
Tray
Shrouding
Shrouded - 4 Wall
Operating Temperature
-40°C ~ 105°C
Style
Board to Cable/Wire
Fastening Type
Latch Lock/Eject Hooks, Long
Overall Contact Length
-
Contact Finish Thickness - Mating
Flash
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Contact Length - Mating
-
Mfr
Assmann WSW Components
Connector Type
Header
Number of Positions Loaded
All
Contact Shape
Square
Insulation Height
0.669" (17.00mm)
Contact Finish - Post
Tin
Number of Rows
2
Termination
Solder
Contact Finish - Mating
Gold
Features
Keying Slot
Ingress Protection
-
Insulation Color
Gray
Current Rating (Amps)
3A
Base Product Number
AWH 14
Product Status
Active
Pitch - Mating
0.100" (2.54mm)
