A99725
A99725
A99725
Favorite Products
A99725
A99725

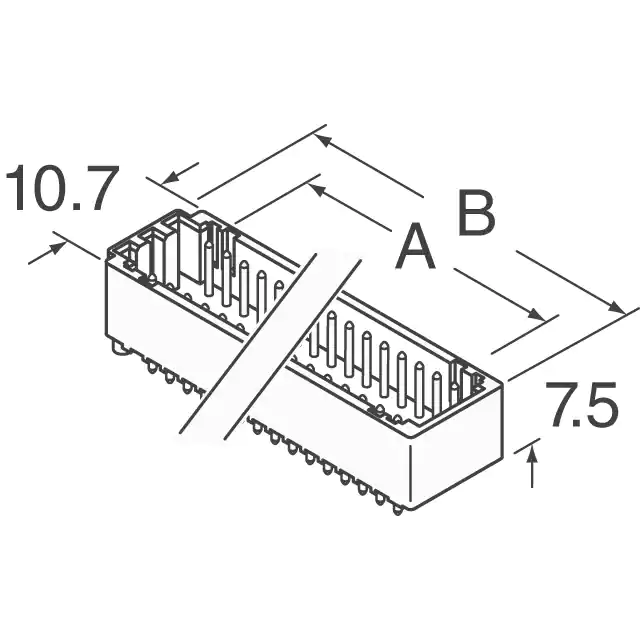

CONN HEADER VERT 26POS 2MM
1-292141-8.pdf
891
891 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Shape
Circular
Contact Length - Mating
0.185" (4.70mm)
Contact Type
Male Pin
Shrouding
Shrouded - 4 Wall
Product Status
Active
Pitch - Mating
0.079" (2.00mm)
Row Spacing - Mating
0.256" (6.50mm)
Base Product Number
292141
Contact Finish - Post
Tin
Connector Type
Header
Number of Rows
2
Insulation Height
0.295" (7.50mm)
Contact Finish Thickness - Post
-
Number of Positions
26
Contact Finish Thickness - Mating
-
Features
Board Guide
Material Flammability Rating
UL94 V-0
Mfr
TE Connectivity AMP Connectors
Mounting Type
Through Hole
Number of Positions Loaded
All
Contact Material
Brass
Insulation Color
Natural
Applications
General Purpose
Termination
Solder
Insulation Material
Polyamide (PA66), Nylon 6/6
Mated Stacking Heights
-
Series
CT
Style
Board to Cable/Wire
Contact Finish - Mating
Tin
Current Rating (Amps)
Varies by Wire Gauge
Package
Tray
Fastening Type
Detent Lock
Contact Length - Post
0.126" (3.20mm)
Overall Contact Length
0.386" (9.80mm)
Operating Temperature
-
Ingress Protection
-
Voltage Rating
125VAC
