A98686
A98686
A98686
Favorite Products
A98686
A98686

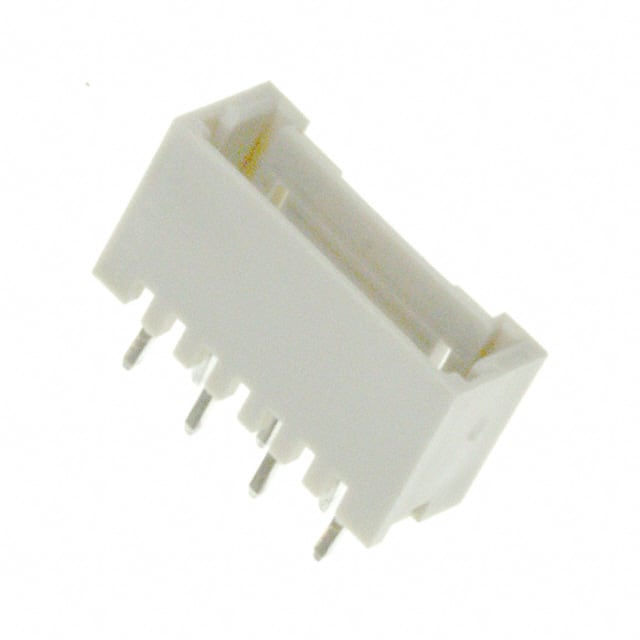

CONN HEADER VERT 7POS 1.5MM
2300837-1.pdf
3,064
3,064 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Post
-
Insulation Height
0.272" (6.91mm)
Mfr
TE Connectivity AMP Connectors
Connector Type
Header
Row Spacing - Mating
-
Fastening Type
Detent Lock
Features
Board Guide
Contact Finish - Mating
Tin
Voltage Rating
50VAC
Number of Rows
1
Contact Material
Brass
Operating Temperature
-30°C ~ 105°C
Applications
General Purpose
Product Status
Active
Overall Contact Length
0.307" (7.80mm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
Contact Finish - Post
Tin
Current Rating (Amps)
Varies by Wire Gauge
Mated Stacking Heights
-
Mounting Type
Through Hole
Contact Length - Post
0.118" (3.00mm)
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Ingress Protection
-
Number of Positions
7
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Termination
Kinked Pin, Solder
Contact Length - Mating
0.094" (2.40mm)
Pitch - Mating
0.059" (1.50mm)
Material Flammability Rating
UL94 V-0
Insulation Color
Gray
Series
Mini CT
Package
Bulk
Contact Type
Male Pin
Style
Board to Cable/Wire
Contact Shape
Square
Base Product Number
292207
