A98390
A98390
A98390
Favorite Products
A98390
A98390

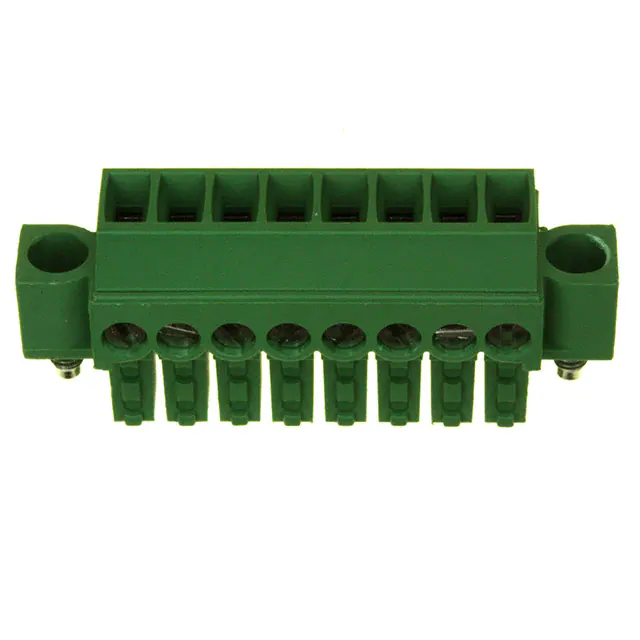

TERM BLOCK PLUG 8POS STR 3.5MM
10,039
10,039 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Wire Gauge or Range - mm²
0.05-2mm²
Series
Buchanan
Features
Mating Flange
Torque - Screw
0.31 Nm (2.7 Lb-In)
Product Status
Active
Contact Mating Finish
Tin
Number of Levels
1
Color
Green
Ingress Protection
-
Mounting Type
Free Hanging (In-Line)
Current - IEC
-
Wire Gauge or Range - AWG
14-30 AWG
Type
Plug, Female Sockets
Number of Positions
8
Screw Size
M2
Package
Bulk
Header Orientation
-
Plug Wire Entry
180°
Current - UL
11 A
Housing Material
Polyamide (PA66), Nylon 6/6
Base Product Number
284510
Mfr
TE Connectivity AMP Connectors
Positions Per Level
8
Pitch
0.138" (3.50mm)
Operating Temperature
-40°C ~ 110°C
Wire Strip Length
5-6mm
Contact Material
Phosphor Bronze
Voltage - UL
300 V
Termination Style
Screw - Rising Cage Clamp
Material Flammability Rating
UL94 V-0
Contact Tail Length
-
Insulation Height
0.437" (11.10mm)
