A97485
A97485
A97485
A97485
Favorite Products
A97485
A97485

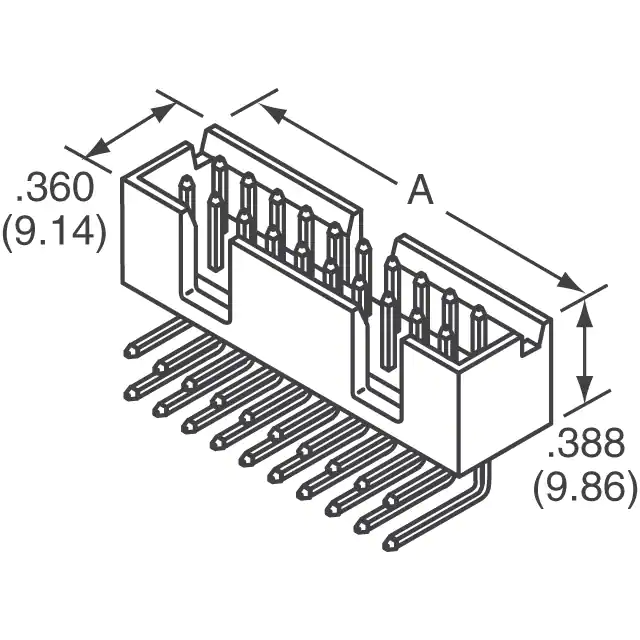

CONN HEADER R/A 50POS 2.54MM
2-1761605-3.pdf
3,022
3,022 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Length - Post
0.102" (2.60mm)
Number of Positions Loaded
All
Mounting Type
Through Hole, Right Angle
Pitch - Mating
0.100" (2.54mm)
Mated Stacking Heights
-
Material Flammability Rating
UL94 V-0
Insulation Color
Blue
Base Product Number
1761605
Number of Rows
2
Contact Length - Mating
0.240" (6.10mm)
Voltage Rating
250VAC
Product Status
Active
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Connector Type
Header
Number of Positions
50
Overall Contact Length
-
Operating Temperature
-65°C ~ 105°C
Contact Type
Male Pin
Shrouding
Shrouded - 4 Wall
Termination
Solder
Ingress Protection
-
Series
AMP-Latch
Package
Bulk
Insulation Height
0.350" (8.89mm)
Features
Keying Slot
Contact Finish Thickness - Post
100.0µin (2.54µm)
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Contact Finish - Post
Tin
Insulation Material
Polybutylene Terephthalate (PBT)
Contact Shape
Square
Contact Finish - Mating
Gold
Current Rating (Amps)
1A per Contact
Applications
-
Fastening Type
Push-Pull
Contact Material
Phosphor Bronze
