A97472
A97472
A97472
A97472
Favorite Products
A97472
A97472

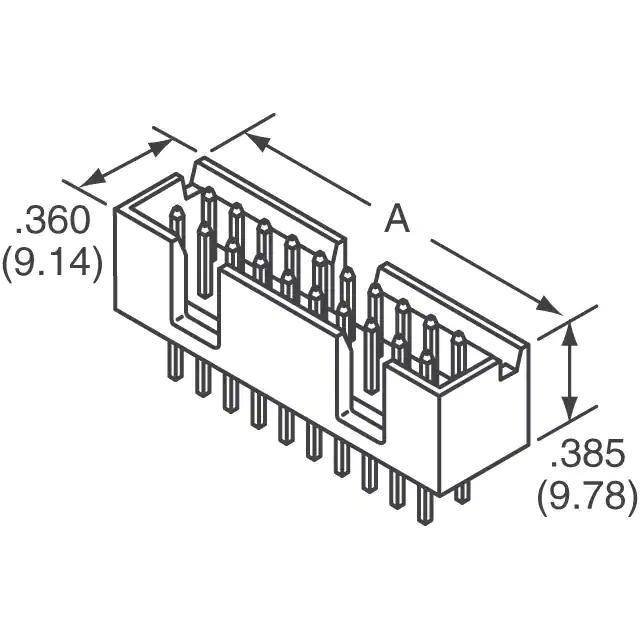

CONN HEADER VERT 16POS 2.54MM
2-1761603-1.pdf
3,022
3,022 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Overall Contact Length
-
Contact Finish Thickness - Post
100.0µin (2.54µm)
Insulation Color
Blue
Number of Positions Loaded
All
Features
Keying Slot
Package
Bulk
Row Spacing - Mating
0.100" (2.54mm)
Fastening Type
Push-Pull
Current Rating (Amps)
1A per Contact
Number of Rows
2
Termination
Solder
Contact Length - Post
0.102" (2.60mm)
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Product Status
Active
Connector Type
Header
Contact Shape
Square
Insulation Material
Polybutylene Terephthalate (PBT)
Voltage Rating
250VAC
Applications
-
Series
AMP-Latch
Style
Board to Cable/Wire
Contact Finish - Mating
Gold
Operating Temperature
-65°C ~ 105°C
Pitch - Mating
0.100" (2.54mm)
Number of Positions
16
Insulation Height
0.350" (8.89mm)
Contact Material
Phosphor Bronze
Contact Type
Male Pin
Base Product Number
1761603
Mfr
TE Connectivity AMP Connectors
Mounting Type
Through Hole
Contact Length - Mating
0.240" (6.10mm)
Ingress Protection
-
Shrouding
Shrouded - 4 Wall
Contact Finish - Post
Tin
