A34322
A34322
A34322
A34322
A34322
Favorite Products
A34322
A34322

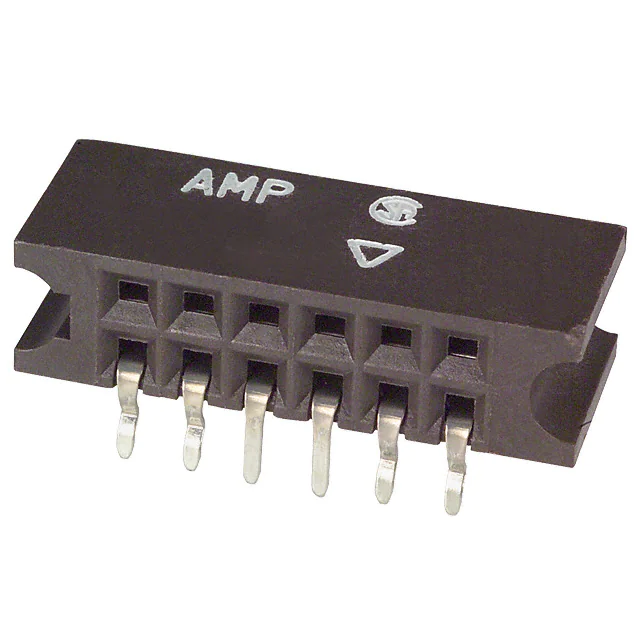

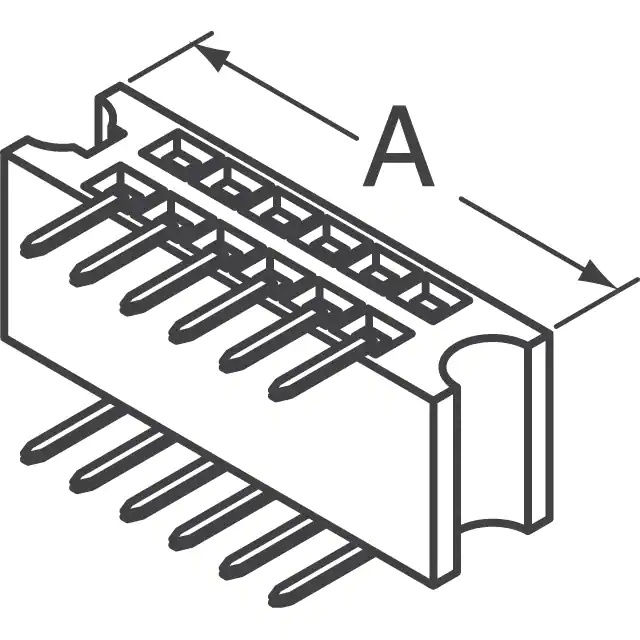

CONN RCPT 12POS 0.1 GOLD PCB R/A
534204-3.pdf
3,096
3,096 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Row Spacing - Mating
0.100" (2.54mm)
Package
Tube
Insulation Material
-
Contact Type
Female Socket
Contact Material
Phosphor Bronze
Series
AMPMODU Mod II
Connector Type
Receptacle
Number of Positions Loaded
All
Number of Rows
2
Contact Finish - Mating
Gold
Insulation Color
Black
Voltage Rating
-
Contact Shape
Square
Base Product Number
534204
Pitch - Mating
0.100" (2.54mm)
Mounting Type
Through Hole, Right Angle
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Current Rating (Amps)
-
Product Status
Active
Material Flammability Rating
-
Contact Finish Thickness - Post
50.0µin (1.27µm)
Number of Positions
12
Insulation Height
0.238" (6.05mm)
Operating Temperature
-
Contact Finish - Post
Tin
Applications
-
Mfr
TE Connectivity AMP Connectors
Style
Board to Board
Fastening Type
Push-Pull
Contact Length - Post
0.115" (2.92mm)
Ingress Protection
-
Termination
Kinked Pin, Solder
Mated Stacking Heights
-
Features
Guide Pin Ears
