A34293
A34293
A34293
A34293
A34293
Favorite Products
A34293
A34293

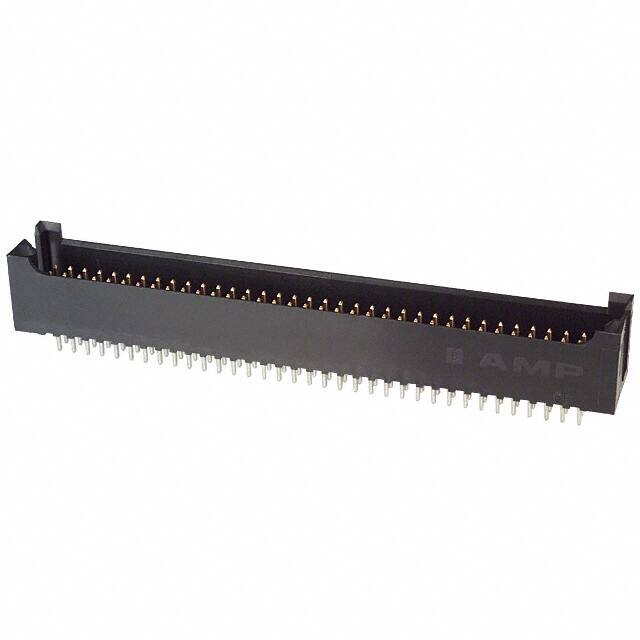

CONN HEADER VERT 70POS 2.54MM
102567-4.pdf
3,053
3,053 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Termination
Solder
Package
Tube
Fastening Type
Push-Pull
Connector Type
Header
Shrouding
Shrouded - 4 Wall
Contact Finish - Post
Tin
Contact Material
Copper Alloy
Insulation Material
Thermoplastic, Glass Filled
Number of Positions Loaded
All
Insulation Height
0.550" (13.97mm)
Contact Finish - Mating
Gold
Features
-
Mated Stacking Heights
-
Applications
-
Series
AMPMODU Mod II
Product Status
Active
Number of Positions
70
Mfr
TE Connectivity AMP Connectors
Pitch - Mating
0.100" (2.54mm)
Row Spacing - Mating
0.100" (2.54mm)
Mounting Type
Through Hole
Overall Contact Length
-
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Operating Temperature
-65°C ~ 105°C
Insulation Color
Black
Base Product Number
102567
Contact Type
Male Pin
Material Flammability Rating
UL94 V-0
Style
Board to Board or Cable
Contact Length - Post
0.180" (4.57mm)
Ingress Protection
-
Voltage Rating
250VAC
Number of Rows
2
Current Rating (Amps)
3A
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Length - Mating
-
Contact Shape
Square
