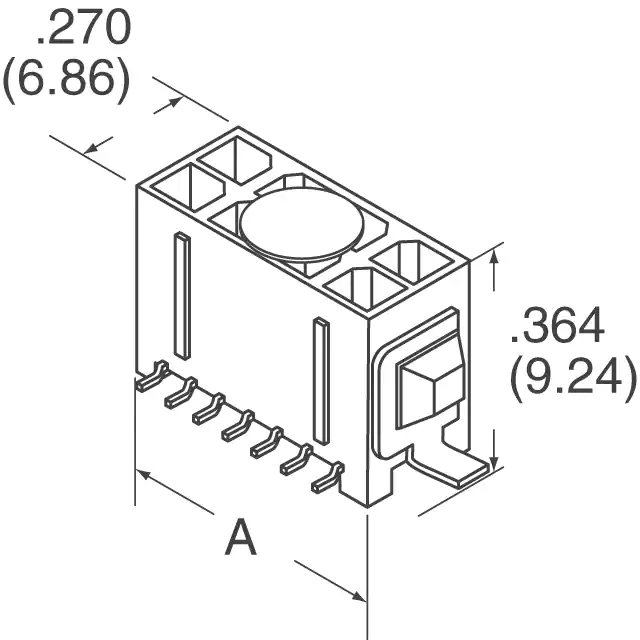

A33250TR
A33250TR
A33250TR
Favorite Products
A33250TR
A33250TR
CONN HEADER SMD 16POS 3MM
5-794638-0.pdf
821
821 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Termination
Solder
Contact Finish - Mating
Gold
Product Status
Active
Mfr
TE Connectivity AMP Connectors
Fastening Type
Locking Ramp
Contact Length - Post
-
Contact Material
Brass
Row Spacing - Mating
0.118" (3.00mm)
Shrouding
Shrouded - 4 Wall
Contact Type
Male Pin
Overall Contact Length
-
Contact Finish - Post
Tin
Operating Temperature
-40°C ~ 105°C
Contact Finish Thickness - Post
100.0µin (2.54µm)
Package
Tape & Reel (TR)^^Cut Tape (CT)^^Digi-Reel®
Number of Rows
2
Number of Positions Loaded
All
Mounting Type
Surface Mount
Current Rating (Amps)
Varies by Wire Gauge
Contact Shape
Square
Features
Solder Retention
Applications
General Purpose
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Material Flammability Rating
UL94 V-0
Voltage Rating
250V
Mated Stacking Heights
-
Connector Type
Header
Style
Board to Cable/Wire
Contact Length - Mating
-
Insulation Material
Polyamide (PA), Nylon
Ingress Protection
-
Series
Micro MATE-N-LOK
Pitch - Mating
0.118" (3.00mm)
Number of Positions
16
Insulation Height
0.364" (9.25mm)
Insulation Color
Black
Base Product Number
794638
