A33110
A33110
A33110
Favorite Products
A33110
A33110
CONN HEADER VERT 40POS 2.54MM
102699-3.pdf
3,033
3,033 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Shrouding
Shrouded - 4 Wall
Contact Type
Male Pin
Base Product Number
102699
Contact Finish - Post
Tin
Number of Positions
40
Mounting Type
Through Hole
Voltage Rating
-
Series
AMPMODU Mod II
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)

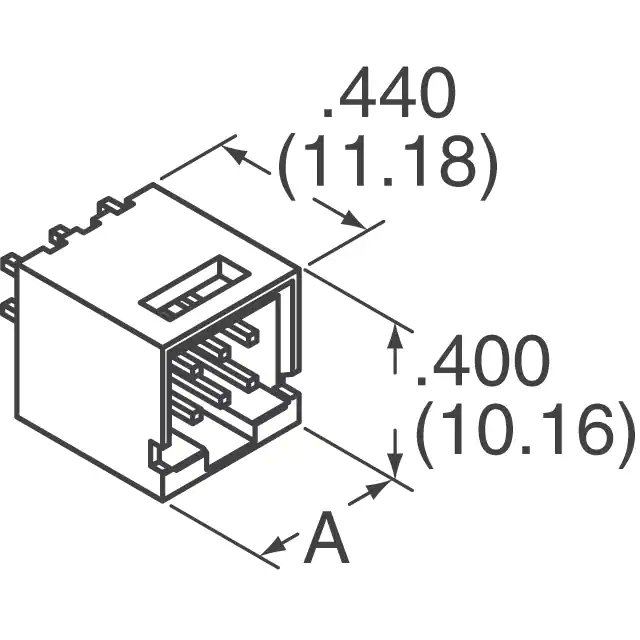

Insulation Height
0.440" (11.18mm)
Insulation Color
Black
Connector Type
Header
Pitch - Mating
0.100" (2.54mm)
Style
Board to Board or Cable
Contact Shape
Square
Ingress Protection
-
Mfr
TE Connectivity AMP Connectors
Package
Tray
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Insulation Material
Thermoplastic
Applications
-
Overall Contact Length
0.660" (16.76mm)
Contact Finish - Mating
Gold
Current Rating (Amps)
3A
Termination
Press-Fit, Solder
Contact Length - Mating
0.320" (8.13mm)
Contact Length - Post
0.250" (6.35mm)
Features
-
Material Flammability Rating
UL94 V-0
Product Status
Active
Fastening Type
Detent Lock
Mated Stacking Heights
-
Contact Material
Copper Alloy
Operating Temperature
-55°C ~ 105°C
Contact Finish Thickness - Post
100.0µin (2.54µm)
Number of Positions Loaded
All
