A33105
A33105
A33105
A33105
Favorite Products
A33105
A33105

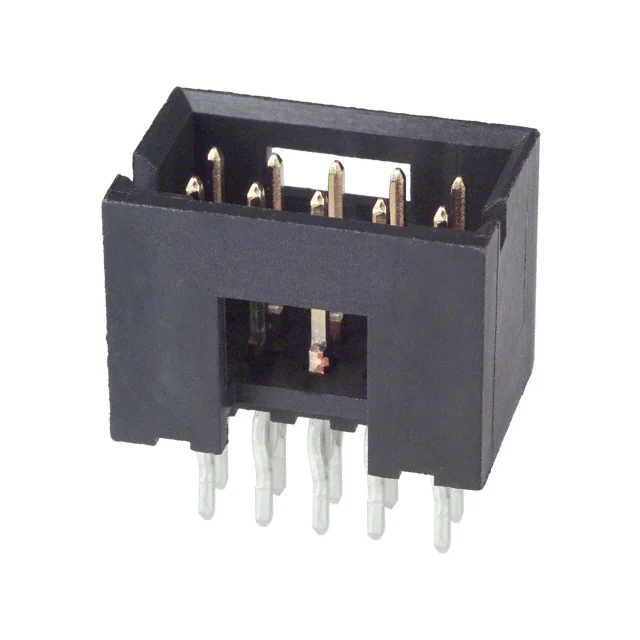

CONN HEADER VERT 10POS 2.54MM
102699-3.pdf
3,007
3,007 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Insulation Height
0.440" (11.18mm)
Contact Finish Thickness - Post
100.0µin (2.54µm)
Mfr
TE Connectivity AMP Connectors
Features
-
Insulation Color
Black
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Pitch - Mating
0.100" (2.54mm)
Overall Contact Length
0.660" (16.76mm)
Series
AMPMODU Mod II
Package
Tray
Connector Type
Header
Shrouding
Shrouded - 4 Wall
Operating Temperature
-55°C ~ 105°C
Contact Type
Male Pin
Number of Positions Loaded
All
Mounting Type
Through Hole
Termination
Press-Fit, Solder
Contact Finish - Mating
Gold
Contact Length - Post
0.250" (6.35mm)
Contact Material
Copper Alloy
Insulation Material
Thermoplastic
Voltage Rating
-
Mated Stacking Heights
-
Product Status
Active
Contact Length - Mating
0.320" (8.13mm)
Applications
-
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Style
Board to Board or Cable
Fastening Type
Detent Lock
Contact Shape
Square
Base Product Number
102699
Number of Positions
10
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Current Rating (Amps)
3A
Contact Finish - Post
Tin
