A3204
A3204
Favorite Products
A3204
A3204

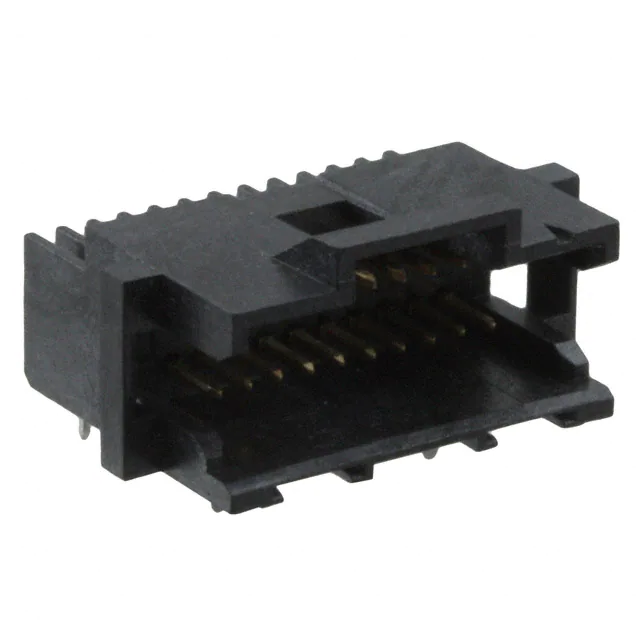

CONN HEADER R/A 20POS 1.27MM
104069-1.pdf
811
811 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Finish - Post
Tin-Lead
Insulation Color
Black
Connector Type
Header
Shrouding
Shrouded - 2 Wall
Mounting Type
Through Hole, Right Angle
Fastening Type
Latch Holder
Contact Material
Copper Alloy
Contact Type
Male Pin
Termination
Solder
Contact Length - Post
0.100" (2.54mm)
Overall Contact Length
-
Features
Board Guide
Current Rating (Amps)
-
Applications
Automotive, General Purpose, Medical, Telecommunications
Product Status
Active
Operating Temperature
-65°C ~ 105°C
Contact Finish Thickness - Post
150.0µin (3.81µm)
Series
AMPMODU System 50
Number of Rows
2
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Voltage Rating
30VAC
Package
Tube
Pitch - Mating
0.050" (1.27mm)
Number of Positions Loaded
All
Contact Length - Mating
0.125" (3.18mm)
Contact Finish - Mating
Gold
Base Product Number
104069
Style
Board to Board or Cable
Insulation Height
0.290" (7.37mm)
Contact Shape
Circular
Ingress Protection
-
Mfr
TE Connectivity AMP Connectors
Number of Positions
20
Row Spacing - Mating
0.100" (2.54mm)
Insulation Material
Thermoplastic
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
