A31872
A31872
A31872
Favorite Products
A31872
A31872

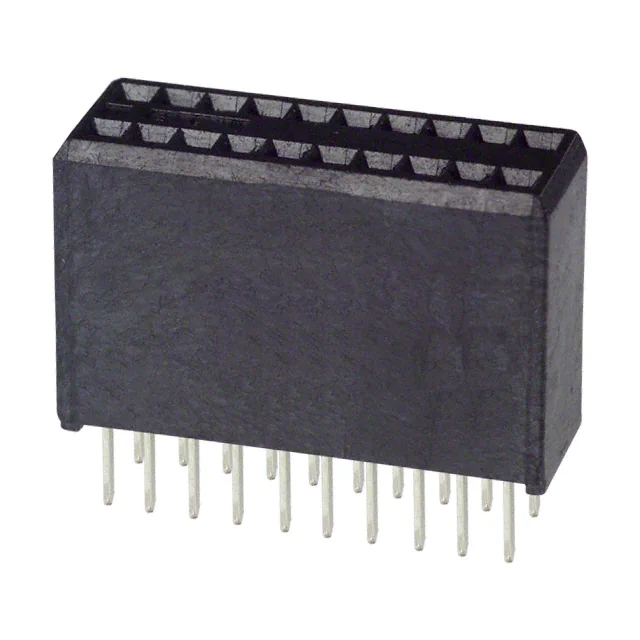

CONN RCPT 20POS 0.05 GOLD PCB
104078-8.pdf
3,012
3,012 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Termination
Solder
Contact Material
Copper Alloy
Voltage Rating
30VAC
Connector Type
Receptacle
Number of Positions Loaded
All
Mated Stacking Heights
11.43mm, 12.57mm
Style
Board to Board
Mfr
TE Connectivity AMP Connectors
Package
Tube
Contact Finish - Post
Tin
Base Product Number
104078
Number of Positions
20
Pitch - Mating
0.050" (1.27mm)
Row Spacing - Mating
0.100" (2.54mm)
Mounting Type
Through Hole
Operating Temperature
-65°C ~ 105°C
Applications
-
Number of Rows
2
Contact Shape
Square
Series
AMPMODU System 50
Contact Type
Female Socket
Ingress Protection
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Finish - Mating
Gold
Contact Length - Post
0.100" (2.54mm)
Material Flammability Rating
UL94 V-0
Features
-
Insulation Material
Thermoplastic, Glass Filled
Insulation Height
0.350" (8.89mm)
Current Rating (Amps)
1A
Contact Finish Thickness - Post
150.0µin (3.81µm)
Product Status
Active
Fastening Type
Push-Pull
Insulation Color
Black
