A31178
A31178
A31178
A31178
Favorite Products
A31178
A31178

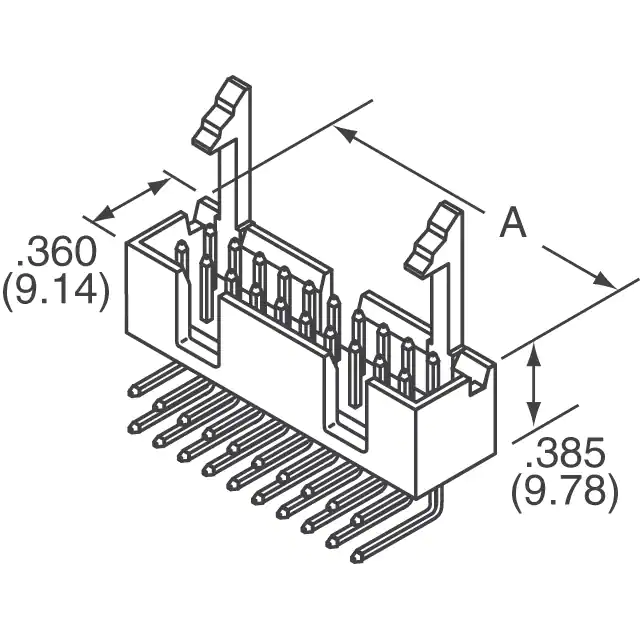

CONN HEADER R/A 16POS 2.54MM
10,029
10,029 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Applications
-
Contact Finish - Post
Tin
Operating Temperature
-65°C ~ 105°C
Number of Positions
16
Number of Rows
2
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Pitch - Mating
0.100" (2.54mm)
Shrouding
Shrouded - 4 Wall
Insulation Material
Polybutylene Terephthalate (PBT)
Insulation Color
Black
Row Spacing - Mating
0.100" (2.54mm)
Style
Board to Cable/Wire
Overall Contact Length
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Mfr
TE Connectivity AMP Connectors
Insulation Height
0.362" (9.20mm)
Contact Shape
Square
Contact Type
Male Pin
Contact Material
Phosphor Bronze
Base Product Number
1761607
Package
Tube
Product Status
Active
Contact Length - Post
0.102" (2.60mm)
Contact Finish - Mating
Gold or Gold-Palladium
Material Flammability Rating
UL94 V-0
Series
AMP-Latch
Termination
Solder
Fastening Type
Latch Lock/Eject Hooks, Long
Features
Keying Slot
Voltage Rating
250VAC
Number of Positions Loaded
All
Contact Length - Mating
0.237" (6.02mm)
Ingress Protection
-
Current Rating (Amps)
1A per Contact
Mated Stacking Heights
-
Contact Finish Thickness - Post
100.0µin (2.54µm)
