A30675
A30675
A30675
A30675
Favorite Products
A30675
A30675

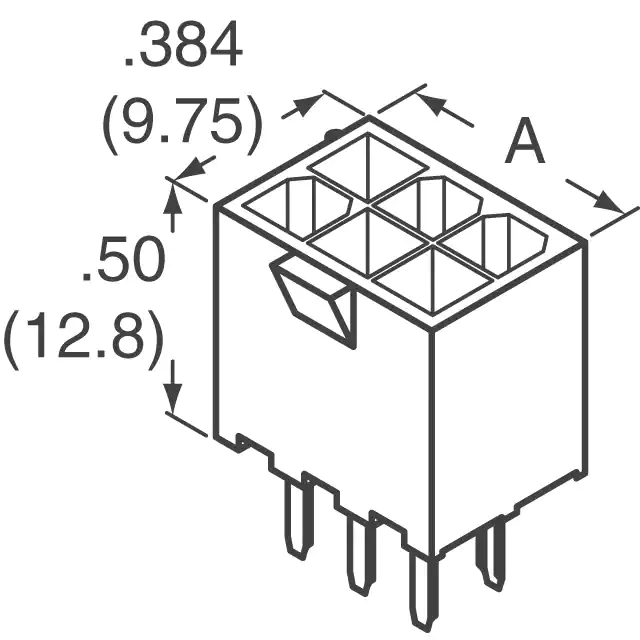

CONN HEADER VERT 16POS 4.2MM
1586039-2.pdf
3,066
3,066 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Insulation Color
Natural
Features
Board Lock
Style
Board to Cable/Wire
Mfr
TE Connectivity AMP Connectors
Shrouding
Shrouded - 4 Wall
Insulation Material
Polyamide (PA66), Nylon 6/6
Base Product Number
1586039
Series
VAL-U-LOK
Pitch - Mating
0.165" (4.20mm)
Contact Finish - Mating
Tin
Connector Type
Header
Contact Length - Mating
-
Overall Contact Length
-
Insulation Height
0.504" (12.80mm)
Contact Shape
Square
Contact Finish Thickness - Mating
80.0µin (2.03µm)
Material Flammability Rating
UL94 V-2
Contact Type
Male Pin
Number of Positions
16
Number of Positions Loaded
All
Product Status
Active
Contact Length - Post
0.138" (3.50mm)
Contact Finish - Post
Tin
Contact Material
Brass Alloy
Current Rating (Amps)
9A
Mated Stacking Heights
-
Package
Bulk
Number of Rows
2
Mounting Type
Through Hole
Fastening Type
Locking Ramp
Operating Temperature
-40°C ~ 105°C
Applications
General Purpose, Industrial, Lighting
Ingress Protection
-
Voltage Rating
600VAC
Contact Finish Thickness - Post
80.0µin (2.03µm)
Row Spacing - Mating
0.165" (4.20mm)
Termination
Solder
