A30673
A30673
A30673
A30673
Favorite Products
A30673
A30673

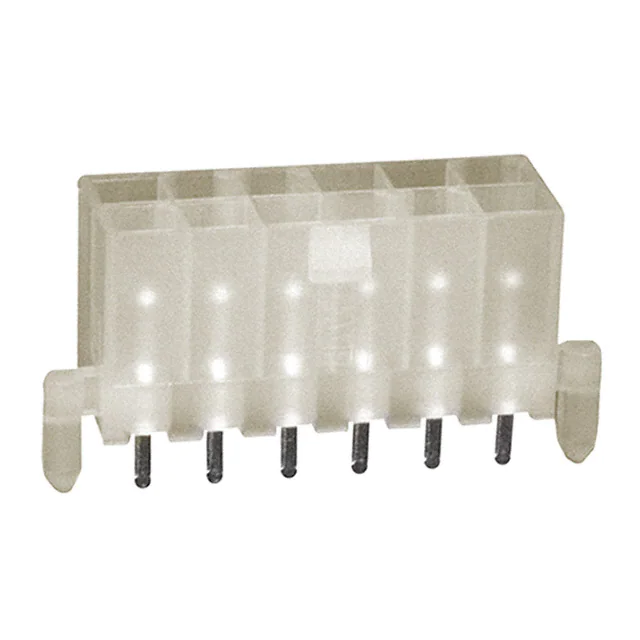

CONN HEADER VERT 12POS 4.2MM
1586039-2.pdf
881
881 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Connector Type
Header
Base Product Number
1586039
Mfr
TE Connectivity AMP Connectors
Number of Rows
2
Contact Length - Mating
-
Current Rating (Amps)
9A
Contact Shape
Square
Contact Finish - Mating
Tin
Contact Finish - Post
Tin
Termination
Solder
Insulation Color
Natural
Package
Bulk
Shrouding
Shrouded - 4 Wall
Insulation Material
Polyamide (PA66), Nylon 6/6
Ingress Protection
-
Voltage Rating
600VAC
Contact Type
Male Pin
Mounting Type
Through Hole
Contact Finish Thickness - Mating
80.0µin (2.03µm)
Mated Stacking Heights
-
Contact Finish Thickness - Post
80.0µin (2.03µm)
Number of Positions
12
Style
Board to Cable/Wire
Fastening Type
Locking Ramp
Applications
General Purpose, Industrial, Lighting
Insulation Height
0.504" (12.80mm)
Features
Board Lock
Series
VAL-U-LOK
Contact Length - Post
0.138" (3.50mm)
Contact Material
Brass Alloy
Product Status
Active
Pitch - Mating
0.165" (4.20mm)
Number of Positions Loaded
All
Operating Temperature
-40°C ~ 105°C
Row Spacing - Mating
0.165" (4.20mm)
Overall Contact Length
-
Material Flammability Rating
UL94 V-2
