A30465
A30465
A30465
Favorite Products
A30465
A30465

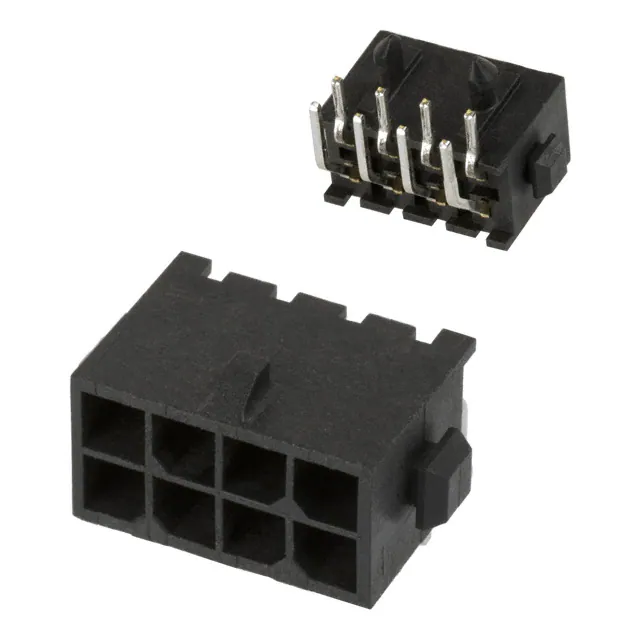

CONN HEADER R/A 8POS 3MM
794620.pdf
811
811 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Product Status
Active
Mfr
TE Connectivity AMP Connectors
Number of Positions
8
Row Spacing - Mating
0.118" (3.00mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Finish - Post
Tin-Lead
Features
Board Lock
Contact Type
Male Pin
Contact Length - Post
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Material
Brass
Series
Micro MATE-N-LOK
Mounting Type
Through Hole, Right Angle
Termination
Solder
Insulation Height
0.290" (7.37mm)
Contact Finish Thickness - Post
100.0µin (2.54µm)
Fastening Type
Locking Ramp
Ingress Protection
-
Number of Rows
2
Shrouding
Shrouded - 4 Wall
Contact Shape
Square
Insulation Color
Black
Voltage Rating
250V
Base Product Number
794620
Connector Type
Header
Insulation Material
Polyamide (PA), Nylon
Current Rating (Amps)
Varies by Wire Gauge
Mated Stacking Heights
-
Package
Tray
Pitch - Mating
0.118" (3.00mm)
Style
Board to Cable/Wire
Material Flammability Rating
UL94 V-0
Applications
General Purpose
Number of Positions Loaded
All
Contact Length - Mating
-
Operating Temperature
-40°C ~ 105°C
