A29771
A29771
A29771
Favorite Products
A29771
A29771

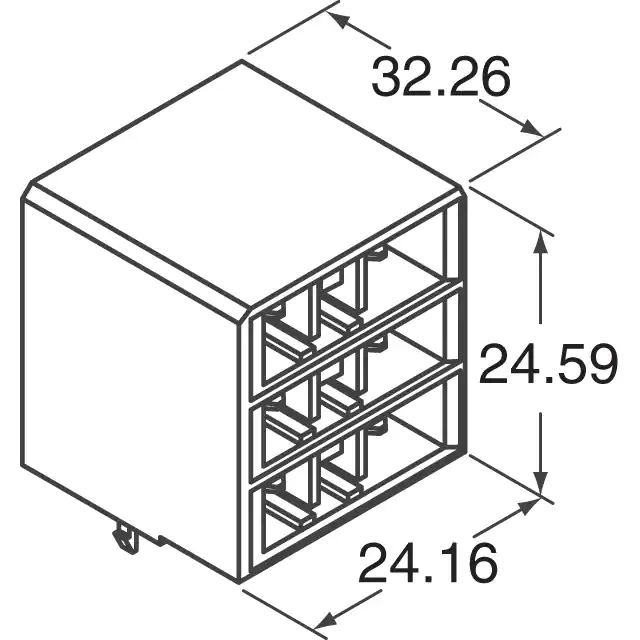

CONN HEADER R/A 9POS 5.08MM
1-1123624-2.pdf
841
841 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mfr
TE Connectivity AMP Connectors
Insulation Color
Black
Row Spacing - Mating
0.300" (7.62mm)
Termination
Solder
Operating Temperature
-55°C ~ 105°C
Pitch - Mating
0.200" (5.08mm)
Contact Material
Copper Alloy
Mated Stacking Heights
-
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Base Product Number
1123624
Package
Bulk
Contact Type
Tab
Features
Board Lock
Number of Positions Loaded
All
Contact Length - Mating
-
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
-
Series
Dynamic D-3200
Fastening Type
Detent Lock
Contact Finish - Mating
Tin
Product Status
Active
Style
Board to Board or Cable
Insulation Height
0.968" (24.59mm)
Connector Type
Header
Number of Positions
9
Insulation Material
Thermoplastic, Polyester, Glass Filled
Voltage Rating
600V
Contact Finish Thickness - Post
-
Applications
General Purpose, Industrial
Mounting Type
Through Hole, Right Angle
Contact Length - Post
0.150" (3.81mm)
Contact Shape
Rectangular
Contact Finish Thickness - Mating
78.7µin (2.00µm)
Contact Finish - Post
Tin
Number of Rows
3
