A29770
A29770
A29770
Favorite Products
A29770
A29770

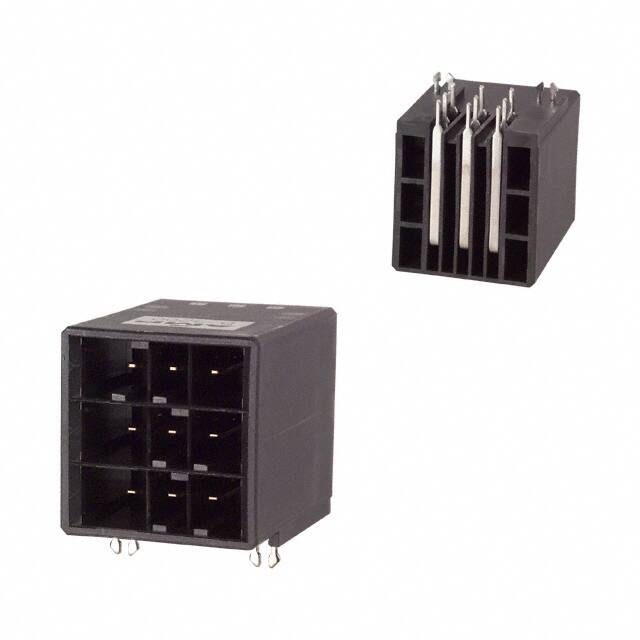

CONN HEADER R/A 9POS 5.08MM
1-1123624-2.pdf
10,060
10,060 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Pitch - Mating
0.200" (5.08mm)
Shrouding
Shrouded - 4 Wall
Applications
General Purpose, Industrial
Number of Rows
3
Row Spacing - Mating
0.300" (7.62mm)
Mounting Type
Through Hole, Right Angle
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Mated Stacking Heights
-
Number of Positions Loaded
All
Contact Shape
Rectangular
Insulation Color
Black
Number of Positions
9
Style
Board to Board or Cable
Insulation Height
0.968" (24.59mm)
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Product Status
Active
Termination
Solder
Contact Finish - Post
Tin
Contact Material
Copper Alloy
Fastening Type
Detent Lock
Contact Length - Mating
-
Overall Contact Length
-
Insulation Material
Thermoplastic, Polyester, Glass Filled
Operating Temperature
-55°C ~ 105°C
Ingress Protection
-
Contact Finish Thickness - Post
-
Series
Dynamic D-3200
Contact Type
Tab
Contact Length - Post
0.150" (3.81mm)
Voltage Rating
600V
Base Product Number
1123624
Mfr
TE Connectivity AMP Connectors
Package
Bulk
Current Rating (Amps)
-
Connector Type
Header
Features
Board Lock
