A29632
A29632
A29632
Favorite Products
A29632
A29632

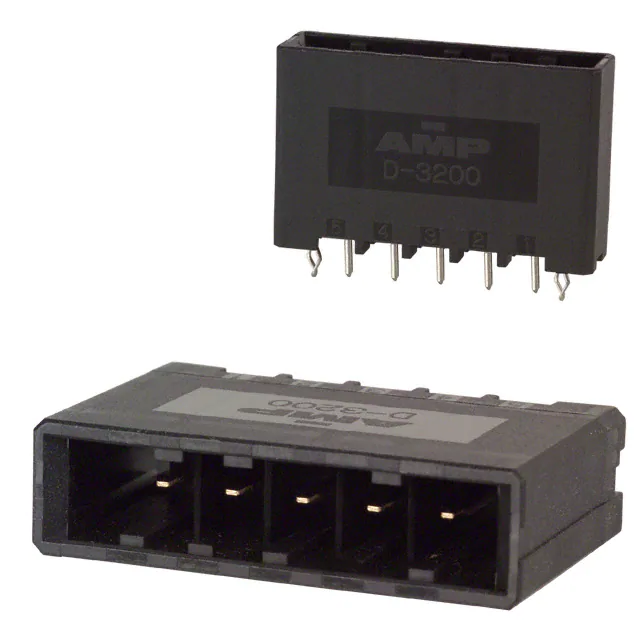

CONN HEADER VERT 5POS 5.08MM
2-316132-3.pdf
831
831 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Current Rating (Amps)
-
Contact Shape
Rectangular
Pitch - Mating
0.200" (5.08mm)
Product Status
Active
Contact Length - Post
0.150" (3.81mm)
Style
Board to Board or Cable
Contact Finish - Post
Tin
Voltage Rating
600V
Applications
General Purpose, Industrial
Package
Tube
Number of Positions
5
Row Spacing - Mating
-
Number of Positions Loaded
All
Mounting Type
Through Hole
Insulation Material
Thermoplastic, Polyester, Glass Filled
Connector Type
Header
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
-
Features
Board Lock
Overall Contact Length
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Insulation Color
Black
Contact Type
Tab
Contact Finish - Mating
Gold
Contact Material
Copper Alloy
Mated Stacking Heights
31.00mm ~ 32.50mm
Mfr
TE Connectivity AMP Connectors
Termination
Solder
Insulation Height
0.850" (21.59mm)
Ingress Protection
-
Series
Dynamic D-3200
Number of Rows
1
Operating Temperature
-55°C ~ 105°C
Material Flammability Rating
UL94 V-0
Fastening Type
Detent Lock
Contact Finish Thickness - Post
-
Base Product Number
316132
