A29556
A29556
A29556
Favorite Products
A29556
A29556

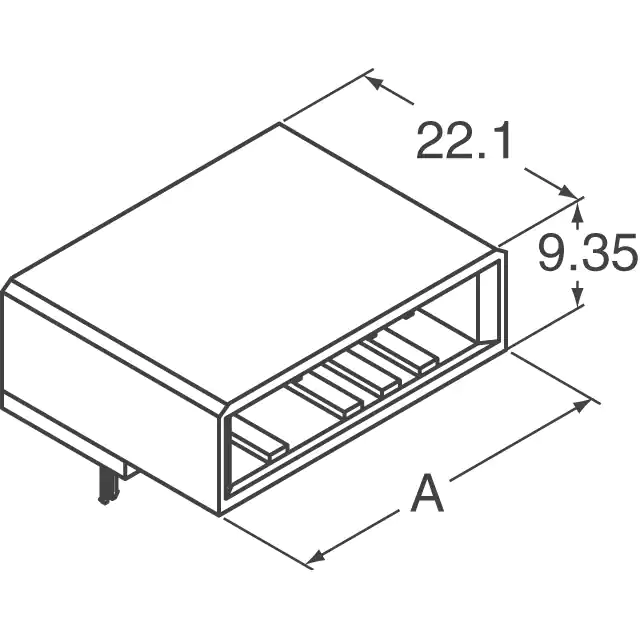

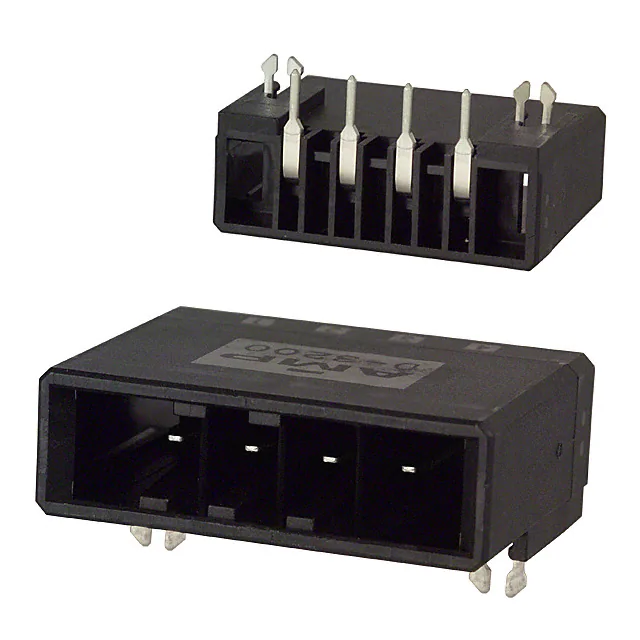

CONN HEADER R/A 4POS 5.08MM
1-179277-5.pdf
3,016
3,016 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mfr
TE Connectivity AMP Connectors
Mounting Type
Through Hole, Right Angle
Base Product Number
179277
Pitch - Mating
0.200" (5.08mm)
Contact Finish Thickness - Mating
78.7µin (2.00µm)
Insulation Material
Thermoplastic, Polyester, Glass Filled
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Contact Finish Thickness - Post
-
Connector Type
Header
Number of Positions Loaded
All
Fastening Type
Detent Lock
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Contact Material
Copper Alloy
Row Spacing - Mating
-
Features
Board Lock
Voltage Rating
600V
Style
Board to Board or Cable
Insulation Height
0.368" (9.35mm)
Contact Finish - Post
Tin
Contact Length - Post
0.150" (3.81mm)
Contact Shape
Rectangular
Operating Temperature
-55°C ~ 105°C
Applications
General Purpose, Industrial
Product Status
Active
Number of Rows
1
Contact Type
Tab
Termination
Solder
Insulation Color
Black
Series
Dynamic D-3200
Package
Bulk
Number of Positions
4
Contact Length - Mating
-
Contact Finish - Mating
Tin
Ingress Protection
-
Current Rating (Amps)
-
