A29522
A29522
A29522
Favorite Products
A29522
A29522

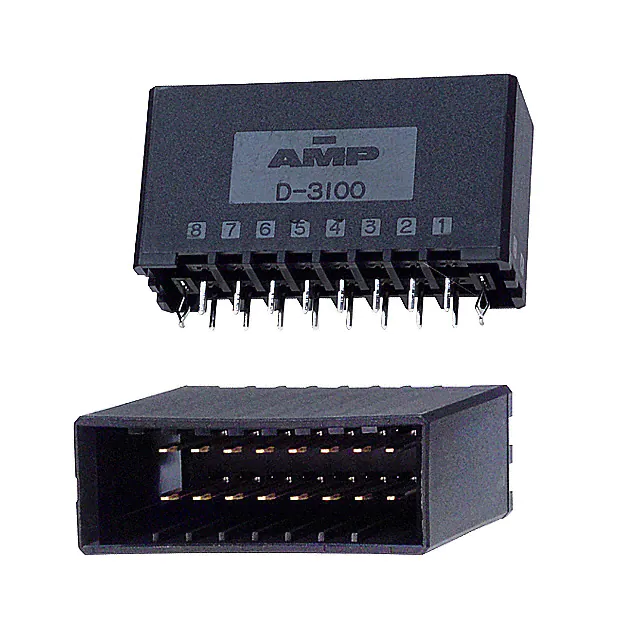

CONN HEADER VERT 16POS 3.81MM
178327-5.pdf
3,072
3,072 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Connector Type
Header
Mfr
TE Connectivity AMP Connectors
Number of Rows
2
Features
Board Lock
Insulation Height
0.850" (21.59mm)
Number of Positions
16
Style
Board to Board or Cable
Series
Dynamic D-3100
Contact Type
Tab
Fastening Type
Detent Lock
Operating Temperature
-55°C ~ 105°C
Product Status
Active
Row Spacing - Mating
0.200" (5.08mm)
Contact Length - Mating
-
Insulation Color
Black
Contact Shape
Rectangular
Contact Finish - Mating
Gold
Contact Finish - Post
Tin
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Base Product Number
178327
Mounting Type
Through Hole
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Length - Post
0.150" (3.81mm)
Insulation Material
Thermoplastic, Polyester, Glass Filled
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Termination
Solder
Voltage Rating
250V
Applications
General Purpose, Industrial
Package
Bulk
Pitch - Mating
0.150" (3.81mm)
Overall Contact Length
-
Contact Material
Copper Alloy
Current Rating (Amps)
-
Contact Finish Thickness - Post
-
