A29397
A29397
Favorite Products
A29397
A29397

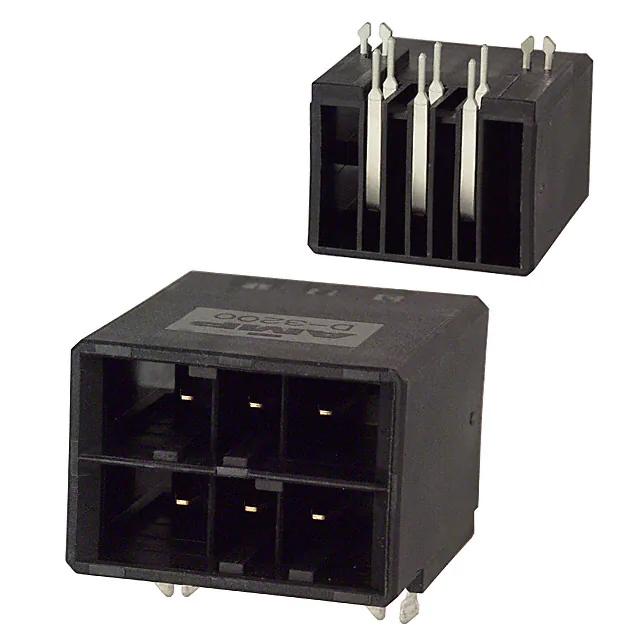

CONN HEADER R/A 6POS 5.08MM
2-178139-2.pdf
3,013
3,013 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
-
Connector Type
Header
Number of Rows
2
Style
Board to Board or Cable
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Material
Copper Alloy
Current Rating (Amps)
-
Voltage Rating
600V
Package
Bulk
Contact Type
Tab
Contact Shape
Rectangular
Ingress Protection
-
Row Spacing - Mating
0.300" (7.62mm)
Contact Finish - Post
Tin
Features
Board Lock
Pitch - Mating
0.200" (5.08mm)
Insulation Height
0.668" (16.97mm)
Insulation Material
Thermoplastic, Polyester, Glass Filled
Insulation Color
Black
Fastening Type
Detent Lock
Mated Stacking Heights
-
Contact Finish Thickness - Post
-
Number of Positions Loaded
All
Termination
Solder
Contact Length - Post
0.150" (3.81mm)
Material Flammability Rating
UL94 V-0
Series
Dynamic D-3200
Product Status
Active
Number of Positions
6
Mounting Type
Through Hole, Right Angle
Base Product Number
178139
Mfr
TE Connectivity AMP Connectors
Operating Temperature
-55°C ~ 105°C
Applications
General Purpose, Industrial
