A28656
A28656
A28656
Favorite Products
A28656
A28656

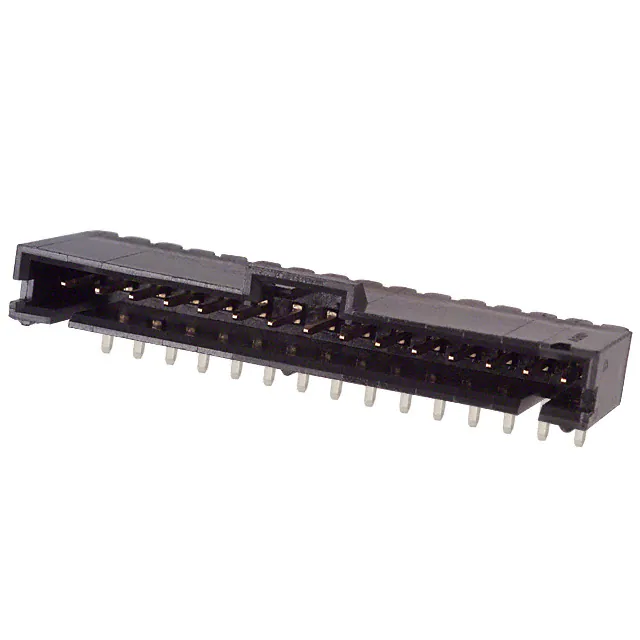

CONN HEADER R/A 15POS 2.54MM
103635-7.pdf
3,053
3,053 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Voltage Rating
-
Row Spacing - Mating
-
Product Status
Active
Contact Type
Male Pin
Number of Rows
1
Overall Contact Length
-
Operating Temperature
-65°C ~ 105°C
Applications
Automotive, General Purpose, Medical, Telecommunications
Termination
Solder
Contact Length - Post
0.130" (3.30mm)
Material Flammability Rating
UL94 V-0
Pitch - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Style
Board to Board or Cable
Contact Length - Mating
0.230" (5.84mm)
Contact Shape
Square
Current Rating (Amps)
3A
Contact Finish Thickness - Post
100.0µin (2.54µm)
Mfr
TE Connectivity AMP Connectors
Connector Type
Header
Series
AMPMODU MTE
Insulation Material
Thermoplastic
Features
Keying Slot
Ingress Protection
-
Insulation Color
Black
Base Product Number
103635
Mounting Type
Through Hole, Right Angle
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Mated Stacking Heights
-
Package
Tube
Number of Positions
15
Contact Finish - Mating
Gold
Fastening Type
Latch Holder
Insulation Height
0.200" (5.08mm)
Contact Finish - Post
Tin-Lead
Contact Material
Brass
Shrouding
Shrouded - 4 Wall
