A26805
A26805
A26805
A26805
A26805
Favorite Products
A26805
A26805
CONN HEADER R/A 20POS 2.54MM
5-103167-7.pdf
10,039
10,039 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Type
Male Pin
Insulation Color
Black
Termination
Solder
Connector Type
Header
Contact Length - Post
0.135" (3.43mm)
Features
-
Mated Stacking Heights
-
Package
Tray
Product Status
Active
Pitch - Mating
0.100" (2.54mm)
Mounting Type
Through Hole, Right Angle
Insulation Material
Thermoplastic
Number of Rows
2
Number of Positions Loaded
All
Operating Temperature
-65°C ~ 105°C
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
3A
Base Product Number
103167
Series
AMPMODU Mod II
Shrouding
Shrouded - 4 Wall
Contact Finish Thickness - Post
100.0µin (2.54µm)
Fastening Type
Detent Lock
Contact Shape
Square
Style
Board to Board or Cable
Contact Length - Mating
0.318" (8.08mm)

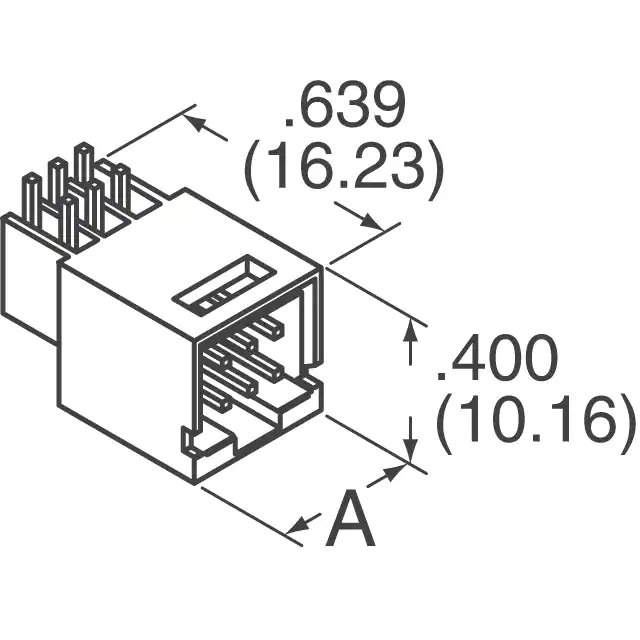

Insulation Height
0.400" (10.16mm)
Contact Material
Phosphor Bronze
Voltage Rating
-
Applications
-
Ingress Protection
-
Mfr
TE Connectivity AMP Connectors
Contact Finish - Mating
Gold
Contact Finish - Post
Tin-Lead
Number of Positions
20
Overall Contact Length
-
