A26776
A26776
A26776
A26776
Favorite Products
A26776
A26776

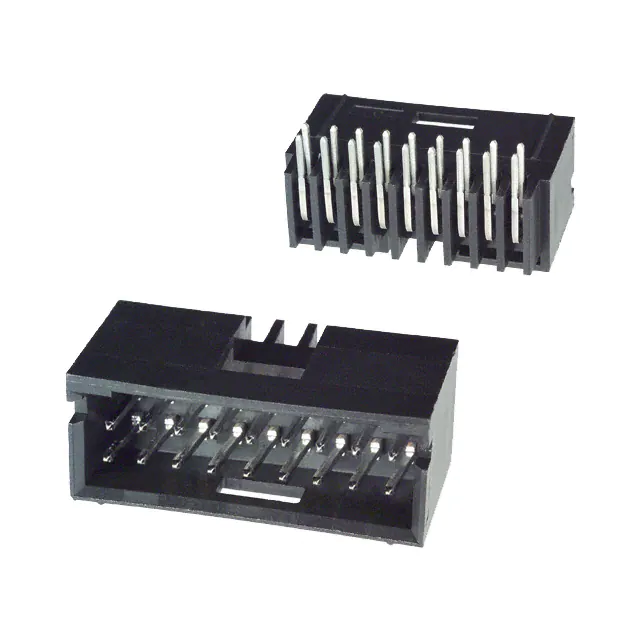

CONN HEADER R/A 18POS 2.54MM
87579_Dwg.pdf
3,074
3,074 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Length - Mating
0.318" (8.08mm)
Insulation Material
Thermoplastic
Pitch - Mating
0.100" (2.54mm)
Contact Finish Thickness - Post
100.0µin (2.54µm)
Product Status
Obsolete
Mated Stacking Heights
-
Style
Board to Board or Cable
Contact Shape
Square
Contact Material
Phosphor Bronze
Ingress Protection
-
Mounting Type
Through Hole, Right Angle
Contact Finish - Mating
Tin-Lead
Package
Tray
Number of Positions Loaded
All
Insulation Height
0.400" (10.16mm)
Material Flammability Rating
UL94 V-0
Number of Positions
18
Number of Rows
2
Overall Contact Length
-
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Voltage Rating
-
Applications
-
Series
AMPMODU Mod II
Connector Type
Header
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Post
0.135" (3.43mm)
Contact Finish - Post
Tin-Lead
Operating Temperature
-65°C ~ 105°C
Base Product Number
87579
Mfr
TE Connectivity AMP Connectors
Contact Type
Male Pin
Shrouding
Shrouded - 4 Wall
Termination
Solder
Fastening Type
Detent Lock
Features
-
Insulation Color
Black
Current Rating (Amps)
3A
