A26705
A26705
A26705
Favorite Products
A26705
A26705

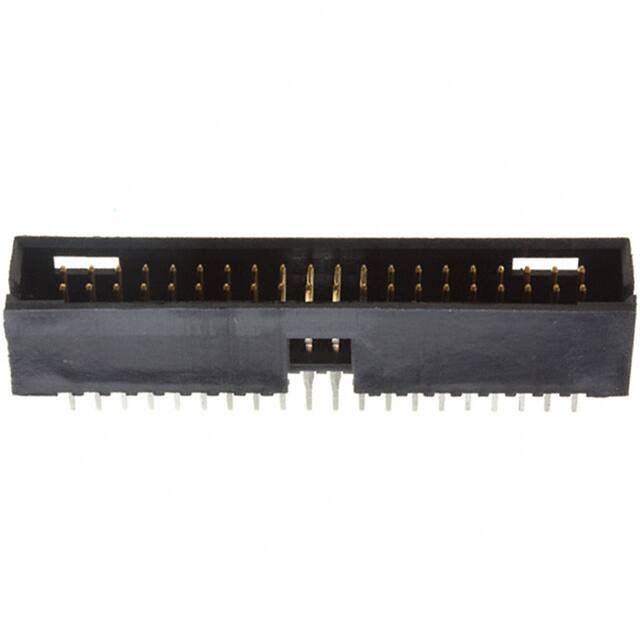

CONN HEADER VERT 40POS 2.54MM
102557-9.pdf
10,010
10,010 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Termination
Press-Fit, Solder
Base Product Number
102557
Insulation Material
Thermoplastic
Contact Type
Male Pin
Number of Positions Loaded
All
Style
Board to Board or Cable
Fastening Type
Detent Lock
Contact Length - Mating
0.320" (8.13mm)
Insulation Height
0.440" (11.18mm)
Contact Finish - Post
Tin-Lead
Operating Temperature
-55°C ~ 105°C
Applications
-
Contact Length - Post
0.250" (6.35mm)
Series
AMPMODU Mod II
Number of Positions
40
Row Spacing - Mating
0.100" (2.54mm)
Contact Shape
Square
Contact Finish Thickness - Post
100.0µin (2.54µm)
Mfr
TE Connectivity AMP Connectors
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole
Features
-
Current Rating (Amps)
3A
Voltage Rating
-
Product Status
Discontinued at Digi-Key
Number of Rows
2
Overall Contact Length
0.660" (16.76mm)
Package
Tray
Contact Finish - Mating
Gold
Mated Stacking Heights
-
Connector Type
Header
Pitch - Mating
0.100" (2.54mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Material
Copper Alloy
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Insulation Color
Black
