A26579
A26579

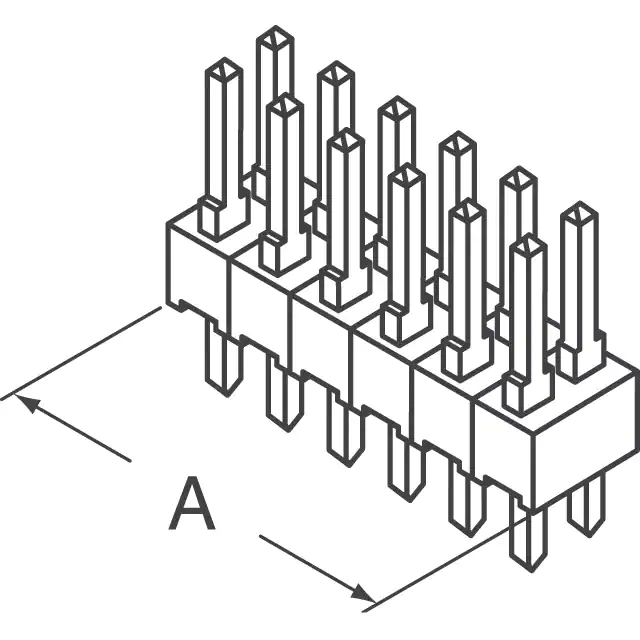

CONN HEADER VERT 16POS 2.54MM
87227-2.pdf
10,029
10,029 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Style
Board to Board or Cable
Contact Length - Mating
0.318" (8.08mm)
Applications
-
Connector Type
Header
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Voltage Rating
-
Contact Finish Thickness - Post
Flash
Termination
Solder
Overall Contact Length
0.533" (13.55mm)
Material Flammability Rating
UL94 V-0
Pitch - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Insulation Material
Thermoplastic
Current Rating (Amps)
3A
Mated Stacking Heights
-
Mfr
TE Connectivity AMP Connectors
Mounting Type
Through Hole
Contact Shape
Circular
Base Product Number
87227
Package
Bulk
Number of Positions Loaded
All
Operating Temperature
-65°C ~ 105°C
Contact Type
Male Pin
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Features
-
Series
AMPMODU Mod II
Product Status
Active
Shrouding
Unshrouded
Fastening Type
Push-Pull
Insulation Height
0.090" (2.29mm)
Contact Finish - Mating
Gold
Contact Finish - Post
Gold
Ingress Protection
-
Number of Positions
16
Contact Length - Post
0.125" (3.18mm)
Insulation Color
Black
