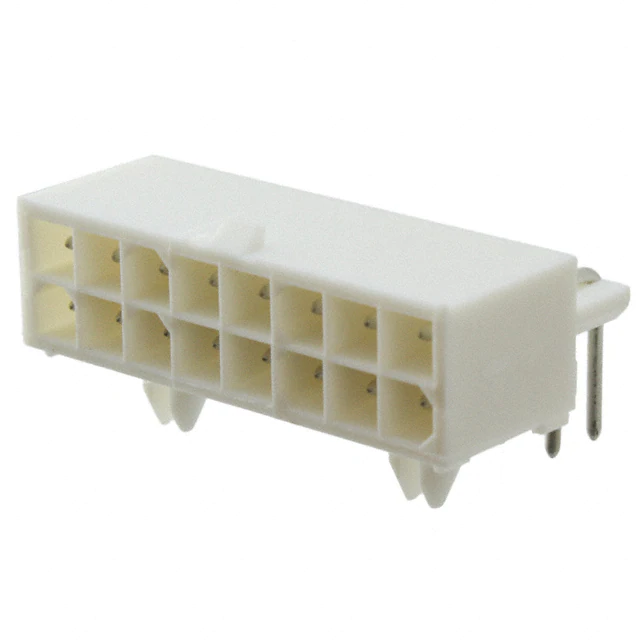

A25645
A25645
Favorite Products
A25645
A25645
CONN HEADER R/A 16POS 4.14MM
770974-1.pdf
801
801 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Package
Bulk
Applications
General Purpose
Number of Rows
2
Row Spacing - Mating
0.163" (4.14mm)
Number of Positions Loaded
All
Contact Finish - Post
Tin-Lead
Features
Board Lock
Product Status
Active
Contact Length - Post
0.145" (3.68mm)
Series
Mini-Universal MATE-N-LOK
Operating Temperature
-20°C ~ 85°C
Pitch - Mating
0.163" (4.14mm)
Contact Finish - Mating
Tin-Lead
Connector Type
Header
Contact Length - Mating
-
Insulation Height
0.386" (9.80mm)
Contact Material
Brass
Insulation Material
Polyamide (PA), Nylon
Material Flammability Rating
UL94 V-0
Insulation Color
White
Voltage Rating
600VAC
Base Product Number
770974
Mfr
TE Connectivity AMP Connectors
Contact Type
Male Pin
Contact Finish Thickness - Mating
150.0µin (3.81µm)
Mated Stacking Heights
-
Contact Finish Thickness - Post
150.0µin (3.81µm)
Style
Board to Cable/Wire
Mounting Type
Through Hole, Right Angle
Termination
Solder
Contact Shape
Circular
Ingress Protection
-
Number of Positions
16
Current Rating (Amps)
Varies by Wire Gauge
Shrouding
Shrouded - 4 Wall
Fastening Type
Locking Ramp
Overall Contact Length
-
