A25637
A25637
Favorite Products
A25637
A25637

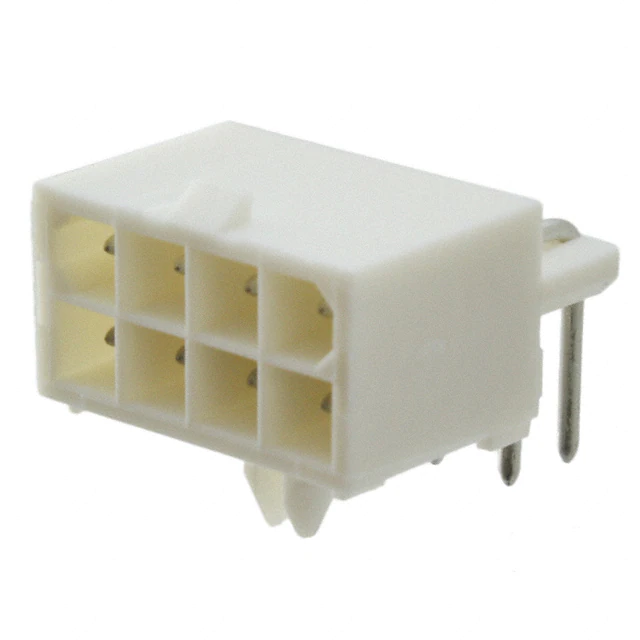

CONN HEADER R/A 8POS 4.14MM
1-770970-0.pdf
3,002
3,002 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Finish - Post
Tin-Lead
Shrouding
Shrouded - 4 Wall
Connector Type
Header
Operating Temperature
-20°C ~ 85°C
Fastening Type
Locking Ramp
Contact Shape
Circular
Contact Finish Thickness - Mating
150.0µin (3.81µm)
Ingress Protection
-
Mfr
TE Connectivity AMP Connectors
Number of Positions
8
Insulation Material
Polyamide (PA), Nylon
Features
Board Lock
Voltage Rating
600VAC
Contact Finish Thickness - Post
150.0µin (3.81µm)
Base Product Number
770970
Contact Type
Male Pin
Style
Board to Cable/Wire
Mounting Type
Through Hole, Right Angle
Termination
Solder
Insulation Height
0.386" (9.80mm)
Number of Rows
2
Material Flammability Rating
UL94 V-0
Insulation Color
White
Series
Mini-Universal MATE-N-LOK
Contact Material
Brass
Mated Stacking Heights
-
Number of Positions Loaded
All
Contact Length - Post
0.145" (3.68mm)
Contact Finish - Mating
Tin-Lead
Current Rating (Amps)
Varies by Wire Gauge
Package
Bulk
Pitch - Mating
0.163" (4.14mm)
Overall Contact Length
-
Product Status
Active
Row Spacing - Mating
0.163" (4.14mm)
Contact Length - Mating
-
Applications
General Purpose
