A25618
A25618
A25618
Favorite Products
A25618
A25618
CONN HEADER VERT 15POS 4.14MM
770190-1.pdf
3,082
3,082 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Connector Type
Header
Fastening Type
Locking Ramp
Termination
Solder
Number of Positions
15
Overall Contact Length
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Operating Temperature
-20°C ~ 105°C
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish - Mating
Gold
Base Product Number
770190
Row Spacing - Mating
0.163" (4.14mm)
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall

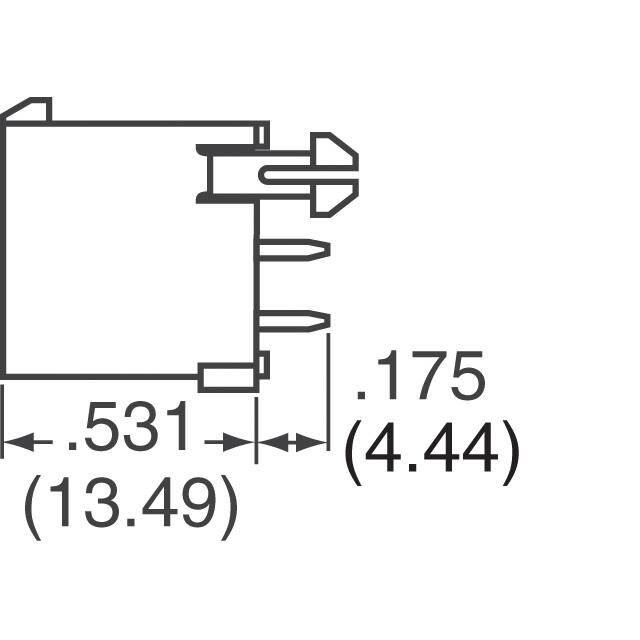

Insulation Height
0.531" (13.50mm)
Voltage Rating
600VAC
Pitch - Mating
0.163" (4.14mm)
Insulation Material
Polyamide (PA), Nylon
Mfr
TE Connectivity AMP Connectors
Series
Mini-Universal MATE-N-LOK
Number of Rows
3
Insulation Color
White
Style
Board to Cable/Wire
Contact Length - Mating
-
Contact Finish - Post
Tin-Lead
Ingress Protection
-
Package
Bulk
Product Status
Active
Contact Shape
Circular
Contact Material
Brass
Applications
General Purpose
Contact Type
Male Pin
Mounting Type
Through Hole
Contact Length - Post
0.175" (4.45mm)
Features
Board Lock
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
Varies by Wire Gauge
Mated Stacking Heights
-
