A23942
A23942
Favorite Products
A23942
A23942

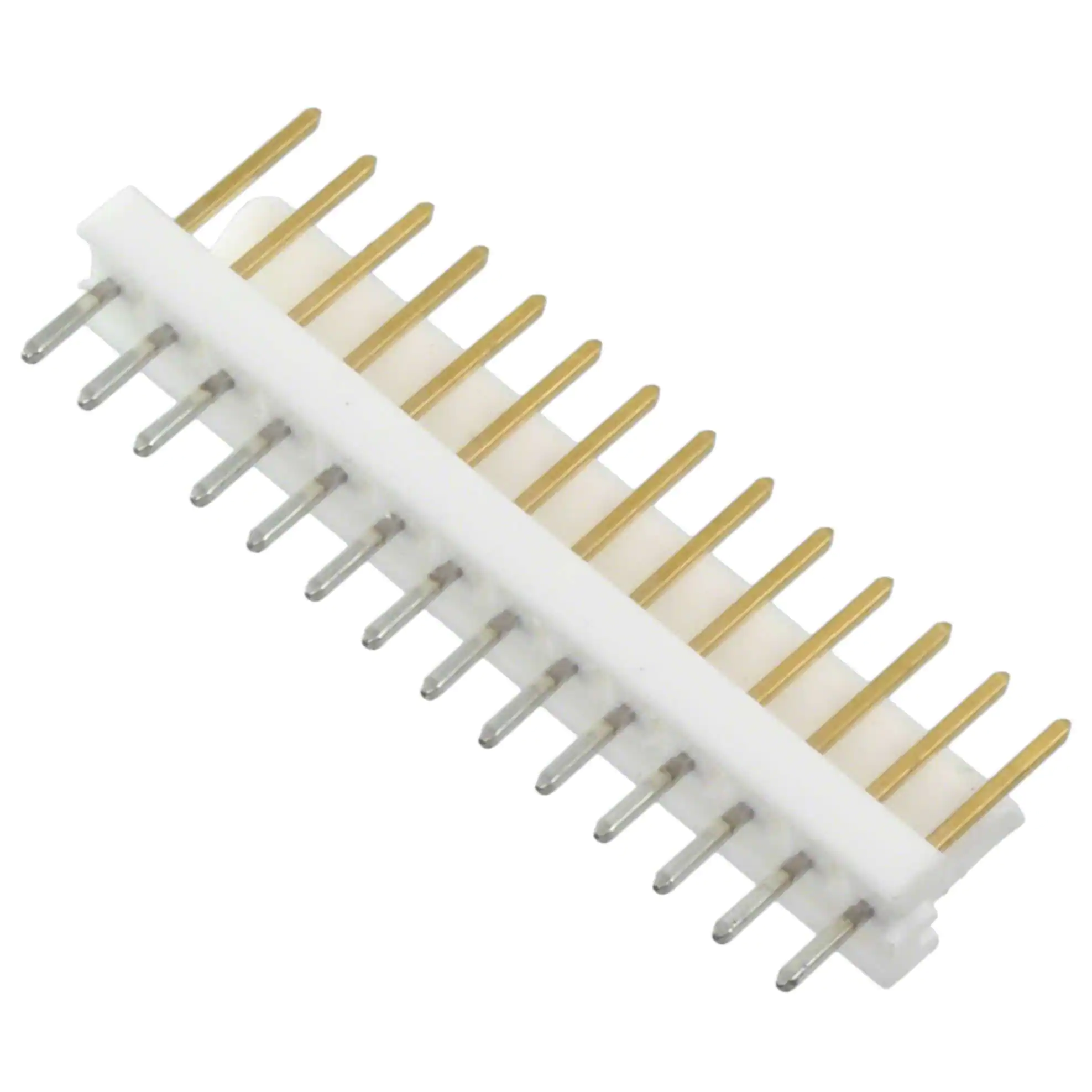

CONN HEADER VERT 14POS 2.54MM
3-641126-3.pdf
10,090
10,090 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Connector Type
Header
Contact Shape
Square
Product Status
Obsolete
Row Spacing - Mating
-
Mounting Type
Through Hole
Contact Finish - Post
Tin
Contact Material
Copper Alloy
Contact Finish Thickness - Post
150.0µin (3.81µm)
Style
Board to Cable/Wire
Contact Length - Mating
0.295" (7.49mm)
Operating Temperature
-55°C ~ 105°C
Package
Bulk
Pitch - Mating
0.100" (2.54mm)
Overall Contact Length
0.535" (13.59mm)
Voltage Rating
250VAC
Mated Stacking Heights
-
Number of Positions
14
Features
-
Shrouding
Shrouded - 1 Wall
Number of Positions Loaded
All
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Mfr
TE Connectivity AMP Connectors
Termination
Solder
Fastening Type
Friction Lock
Contact Length - Post
0.140" (3.56mm)
Insulation Height
0.305" (7.75mm)
Contact Finish - Mating
Gold
Contact Type
Male Pin
Number of Rows
1
Insulation Material
Thermoplastic
Current Rating (Amps)
Varies by Wire Gauge
Series
MTA-100
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Insulation Color
Natural
Applications
General Purpose
