A123224
A123224
Favorite Products
A123224
A123224

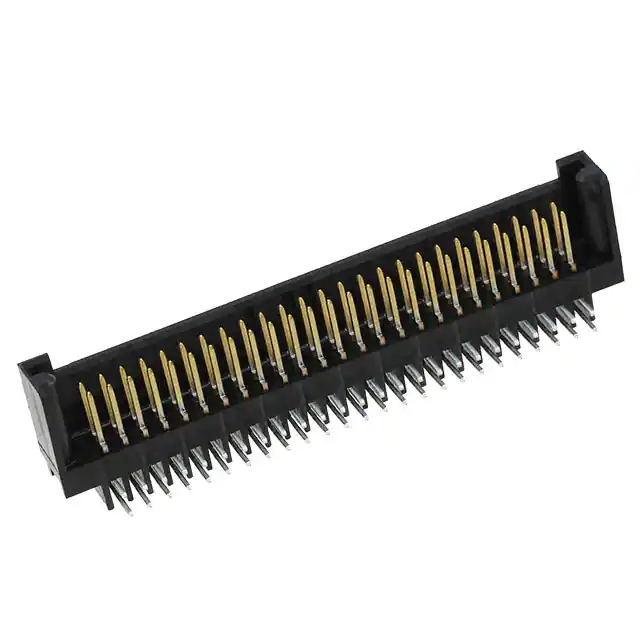

CONN HEADER R/A 50POS 2.54MM
102802-8.pdf
3,094
3,094 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Length - Mating
0.320" (8.13mm)
Contact Finish - Post
Tin
Package
Tube
Insulation Color
Black
Pitch - Mating
0.100" (2.54mm)
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Post
0.125" (3.18mm)
Contact Material
Phosphor Bronze
Current Rating (Amps)
2A
Contact Finish Thickness - Post
100.0µin (2.54µm)
Base Product Number
102802
Number of Rows
2
Operating Temperature
-65°C ~ 105°C
Termination
Solder
Overall Contact Length
-
Contact Finish - Mating
Gold
Features
-
Material Flammability Rating
UL94 V-0
Series
AMPMODU Mod II
Number of Positions
50
Fastening Type
Push-Pull
Insulation Height
0.319" (8.10mm)
Mfr
TE Connectivity AMP Connectors
Shrouding
Shrouded - 3 Wall
Mounting Type
Through Hole, Right Angle
Contact Shape
Square
Voltage Rating
250VAC
Ingress Protection
-
Number of Positions Loaded
All
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Insulation Material
Thermoplastic
Applications
-
Product Status
Active
Connector Type
Header
Contact Type
Male Pin
Style
Board to Board or Cable
Mated Stacking Heights
-
