A122371
A122371
A122371
Favorite Products
A122371
A122371

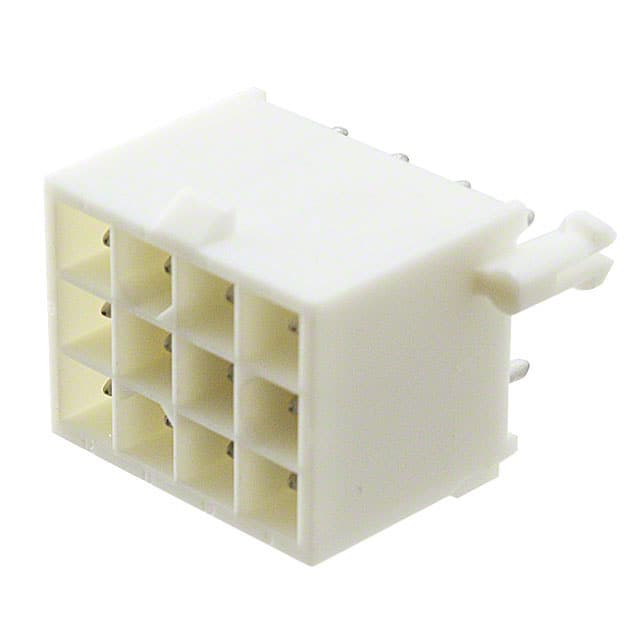

CONN HEADER VERT 12POS 4.14MM
794040-2.pdf
3,015
3,015 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Features
Board Lock
Contact Finish Thickness - Mating
150.0µin (3.81µm)
Number of Positions
12
Pitch - Mating
0.163" (4.14mm)
Style
Board to Cable/Wire
Mfr
TE Connectivity AMP Connectors
Fastening Type
Locking Ramp
Contact Length - Mating
-
Insulation Material
Polyamide (PA), Nylon
Operating Temperature
-20°C ~ 85°C
Insulation Color
White
Applications
General Purpose
Connector Type
Header
Number of Rows
3
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Termination
Solder
Contact Length - Post
0.175" (4.45mm)
Contact Finish - Mating
Tin
Contact Finish - Post
Tin
Mated Stacking Heights
-
Contact Type
Male Pin
Mounting Type
Through Hole
Ingress Protection
-
Contact Finish Thickness - Post
150.0µin (3.81µm)
Voltage Rating
600VAC
Contact Shape
Circular
Current Rating (Amps)
Varies by Wire Gauge
Series
Mini-Universal MATE-N-LOK
Package
Bulk
Overall Contact Length
-
Insulation Height
0.531" (13.50mm)
Contact Material
Brass
Material Flammability Rating
UL94 V-0
Base Product Number
794040
Product Status
Active
Row Spacing - Mating
0.163" (4.14mm)
