A121767
A121767
A121767
Favorite Products
A121767
A121767

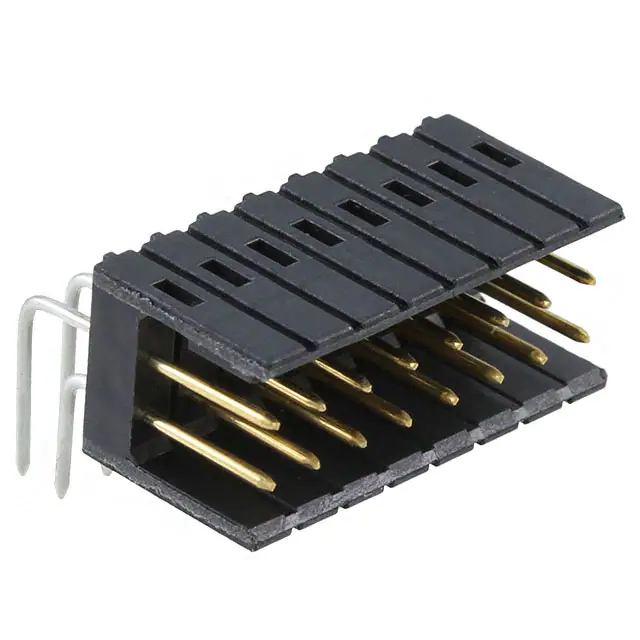

CONN HEADER R/A 16POS 2.54MM
826467-6.pdf
3,017
3,017 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Operating Temperature
-55°C ~ 105°C
Contact Finish - Post
Tin
Applications
-
Number of Positions Loaded
All
Contact Shape
Square
Contact Material
Phosphor Bronze
Shrouding
Shrouded - 2 Wall
Ingress Protection
-
Mated Stacking Heights
-
Connector Type
Header
Style
Board to Board or Cable
Contact Length - Mating
-
Overall Contact Length
-
Current Rating (Amps)
-
Voltage Rating
-
Series
AMPMODU Mod II
Product Status
Active
Contact Type
Male Pin
Number of Positions
16
Termination
Solder
Insulation Height
0.339" (8.61mm)
Contact Finish Thickness - Mating
3.90µin (0.099µm)
Features
-
Mfr
TE Connectivity AMP Connectors
Pitch - Mating
0.100" (2.54mm)
Number of Rows
2
Insulation Color
Black
Package
Bulk
Contact Length - Post
0.126" (3.20mm)
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Row Spacing - Mating
0.100" (2.54mm)
Fastening Type
Latch Holder
Base Product Number
826470
Material Flammability Rating
UL94 V-0
Mounting Type
Through Hole, Right Angle
Contact Finish - Mating
Gold
Contact Finish Thickness - Post
118.1µin (3.00µm)
