A121763
A121763
A121763
Favorite Products
A121763
A121763

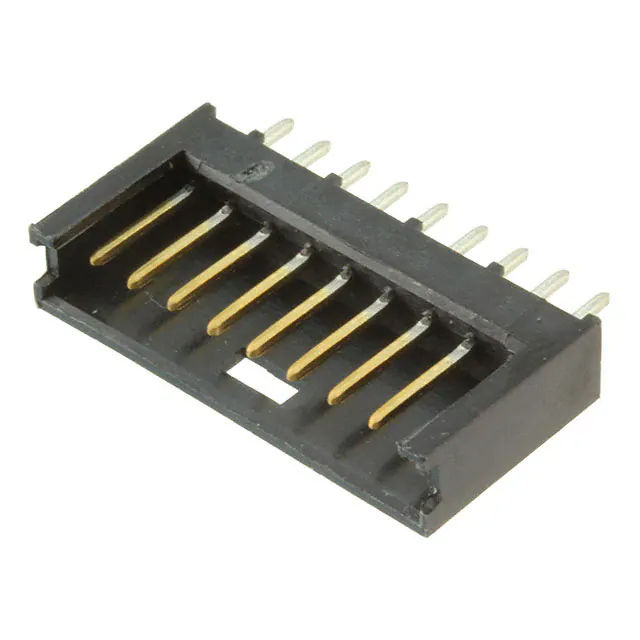

CONN HEADER VERT 9POS 2.54MM
280372-1.pdf
3,002
3,002 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Insulation Color
Black
Number of Rows
1
Contact Finish Thickness - Post
98.4µin (2.50µm)
Product Status
Active
Row Spacing - Mating
-
Overall Contact Length
0.563" (14.30mm)
Features
-
Voltage Rating
40V
Mounting Type
Through Hole
Contact Shape
Square
Ingress Protection
-
Series
AMPMODU Mod II
Pitch - Mating
0.100" (2.54mm)
Style
Board to Board or Cable
Contact Length - Mating
0.260" (6.60mm)
Contact Material
Brass
Connector Type
Header
Number of Positions
9
Shrouding
Shrouded - 3 Wall
Contact Finish - Post
Tin
Number of Positions Loaded
All
Termination
Solder
Contact Finish - Mating
Gold
Operating Temperature
-40°C ~ 80°C
Package
Bulk
Contact Length - Post
0.138" (3.50mm)
Material Flammability Rating
UL94 V-0
Base Product Number
280508
Mfr
TE Connectivity AMP Connectors
Contact Type
Male Pin
Fastening Type
Detent Lock
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Applications
-
Insulation Height
0.496" (12.60mm)
Insulation Material
Thermoplastic
Current Rating (Amps)
3A
Mated Stacking Heights
-
