A120684
A120684
Favorite Products
A120684
A120684

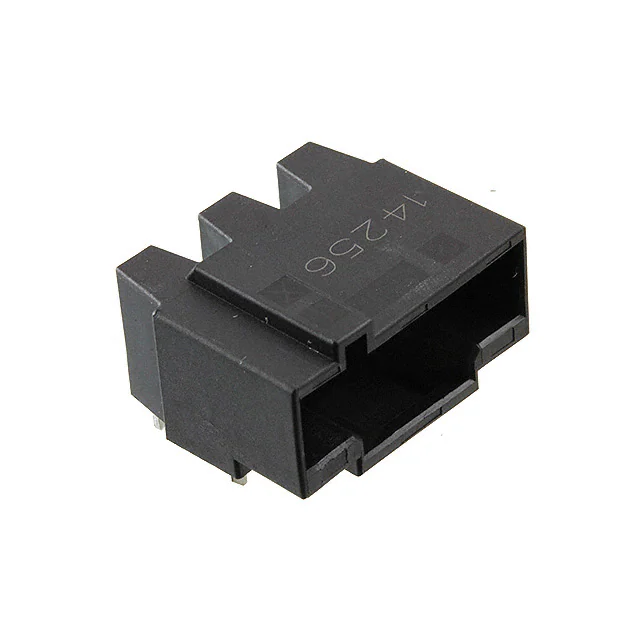

CONN HEADER R/A 3POS 7.5MM
3-2229803-1.pdf
3,036
3,036 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Applications
General Purpose, Industrial
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Insulation Material
Thermoplastic, Polyester, Glass Filled
Contact Length - Post
0.150" (3.81mm)
Voltage Rating
600V
Mfr
TE Connectivity AMP Connectors
Package
Tray
Insulation Height
0.472" (12.00mm)
Operating Temperature
-30°C ~ 105°C
Mated Stacking Heights
-
Row Spacing - Mating
-
Mounting Type
Through Hole, Right Angle
Termination
Solder
Number of Positions Loaded
All
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Features
Board Lock
Insulation Color
Black
Pitch - Mating
0.295" (7.50mm)
Contact Length - Mating
-
Contact Shape
Rectangular
Contact Finish - Post
Tin
Contact Material
Copper Alloy
Base Product Number
2229803
Series
Dynamic D-3950
Product Status
Active
Number of Positions
3
Ingress Protection
-
Current Rating (Amps)
-
Connector Type
Header
Contact Type
Tab
Number of Rows
1
Style
Board to Board or Cable
Fastening Type
Detent Lock
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
