A119389
A119389
Favorite Products
A119389
A119389

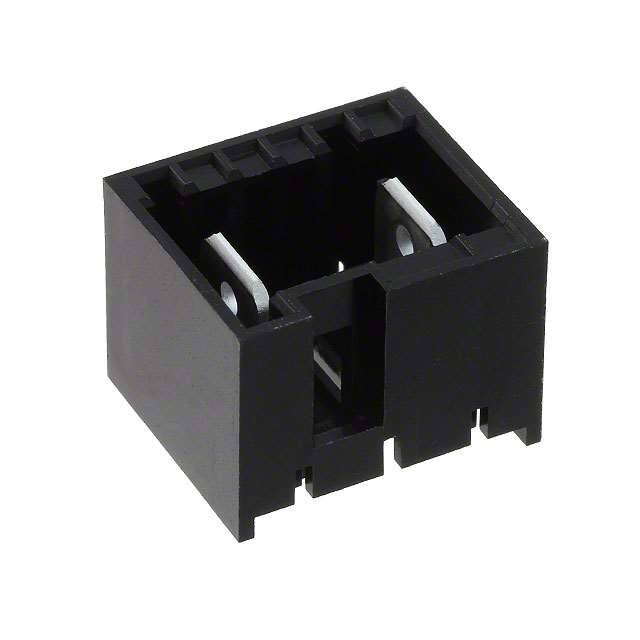

CONN HEADER VERT 3POS 5MM
521388_Dwg.pdf
10,090
10,090 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mounting Type
Through Hole
Material Flammability Rating
UL94 V-0
Package
Bulk
Connector Type
Header
Style
Board to Cable/Wire
Termination
Solder
Contact Shape
Rectangular
Contact Material
Brass
Features
Board Guide, Glow Wire Compliant
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Fastening Type
Latch Holder
Contact Length - Mating
-
Contact Finish - Mating
Tin
Contact Finish - Post
Tin
Insulation Color
-
Mfr
TE Connectivity AMP Connectors
Pitch - Mating
0.197" (5.00mm)
Row Spacing - Mating
-
Contact Length - Post
0.138" (3.50mm)
Insulation Height
0.504" (12.80mm)
Mated Stacking Heights
-
Number of Positions Loaded
2
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Type
Tab
Insulation Material
Polyamide (PA66), Nylon 6/6
Ingress Protection
-
Applications
General Purpose
Series
-
Number of Positions
3
Contact Finish Thickness - Mating
150.0µin (3.81µm)
Voltage Rating
250VAC
Operating Temperature
-40°C ~ 120°C
Current Rating (Amps)
-
Base Product Number
521388
Product Status
Obsolete
Number of Rows
1
