A118561
A118561
Favorite Products
A118561
A118561

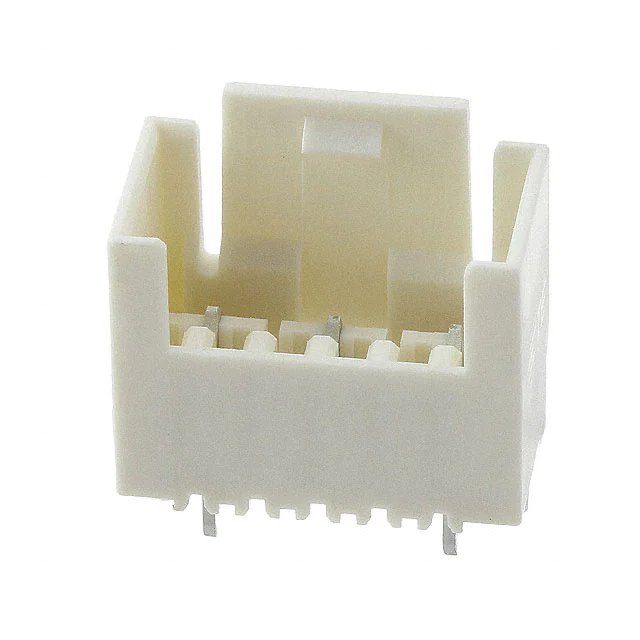

CONN HEADER VERT 5POS 2.5MM
1-1971923-9.pdf
3,072
3,072 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Product Status
Active
Contact Length - Mating
-
Insulation Color
Natural
Contact Finish - Post
Tin
Pitch - Mating
0.098" (2.50mm)
Mounting Type
Through Hole
Insulation Height
0.610" (15.49mm)
Insulation Material
Polyamide (PA), Nylon
Mfr
TE Connectivity AMP Connectors
Row Spacing - Mating
-
Style
Board to Cable/Wire
Shrouding
Shrouded - 4 Wall
Series
-
Package
Bulk
Contact Type
Tab
Operating Temperature
-40°C ~ 120°C
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
-
Mated Stacking Heights
-
Base Product Number
1971921
Contact Length - Post
0.114" (2.90mm)
Voltage Rating
-
Applications
General Purpose
Number of Positions Loaded
3
Fastening Type
Locking Ramp
Overall Contact Length
-
Contact Shape
Rectangular
Connector Type
Header
Number of Positions
5
Number of Rows
1
Termination
Solder
Contact Finish - Mating
Tin
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
Contact Material
Copper Alloy
Features
Board Guide, Glow Wire Compliant
Ingress Protection
-
