A116736
A116736
Favorite Products
A116736
A116736

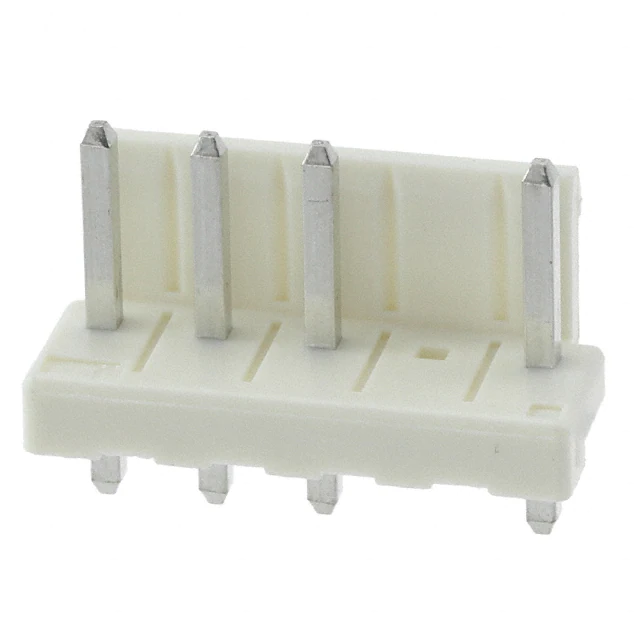

CONN HEADER VERT 5POS 3.96MM
2-1123723-1.pdf
3,055
3,055 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Package
Bulk
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions Loaded
4
Current Rating (Amps)
7.5A
Shrouding
Shrouded - 1 Wall
Ingress Protection
-
Voltage Rating
250VAC
Connector Type
Header
Number of Rows
1
Termination
Solder
Contact Finish Thickness - Post
-
Base Product Number
1565036
Mfr
TE Connectivity AMP Connectors
Pitch - Mating
0.156" (3.96mm)
Number of Positions
5
Style
Board to Cable/Wire
Contact Length - Post
0.146" (3.70mm)
Overall Contact Length
0.567" (14.40mm)
Contact Finish Thickness - Mating
-
Features
-
Applications
General Purpose, Industrial, Lighting
Product Status
Active
Fastening Type
Friction Lock
Contact Finish - Post
Tin
Contact Material
Brass
Insulation Color
Natural
Contact Shape
Square
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Series
Economy Power
Contact Type
Male Pin
Insulation Height
0.362" (9.20mm)
Contact Finish - Mating
Tin
Operating Temperature
-25°C ~ 105°C
Row Spacing - Mating
-
Mounting Type
Through Hole
Contact Length - Mating
0.303" (7.70mm)
