A115856
A115856
Favorite Products
A115856
A115856

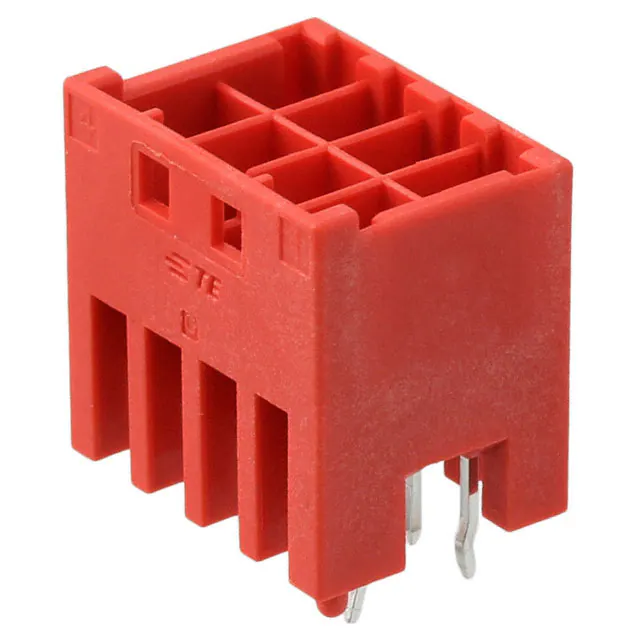

CONN HEADER VERT 8POS 3.3MM
1-1971906-2.pdf
3,017
3,017 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Package
Tray
Material Flammability Rating
UL94 V-0
Base Product Number
1971906
Pitch - Mating
0.130" (3.30mm)
Number of Positions Loaded
All
Row Spacing - Mating
0.205" (5.20mm)
Contact Length - Mating
-
Contact Length - Post
0.118" (3.00mm)
Insulation Height
0.561" (14.25mm)
Insulation Color
Red
Mounting Type
Through Hole
Fastening Type
Latch Holder
Contact Finish - Post
Tin
Ingress Protection
-
Current Rating (Amps)
Varies by Wire Gauge
Style
Board to Cable/Wire
Features
Board Guide
Operating Temperature
-30°C ~ 105°C
Contact Finish Thickness - Post
-
Termination
Kinked Pin, Solder
Contact Shape
Square
Contact Finish - Mating
Tin
Connector Type
Header
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Mfr
TE Connectivity AMP Connectors
Product Status
Active
Number of Rows
2
Contact Finish Thickness - Mating
-
Voltage Rating
250VAC
Applications
General Purpose, Industrial
Number of Positions
8
Series
Grace Inertia, GIC
Contact Material
Brass
Contact Type
Male Pin
Shrouding
Shrouded - 4 Wall
Overall Contact Length
0.575" (14.60mm)
Mated Stacking Heights
-
