A115232
A115232
Favorite Products
A115232
A115232

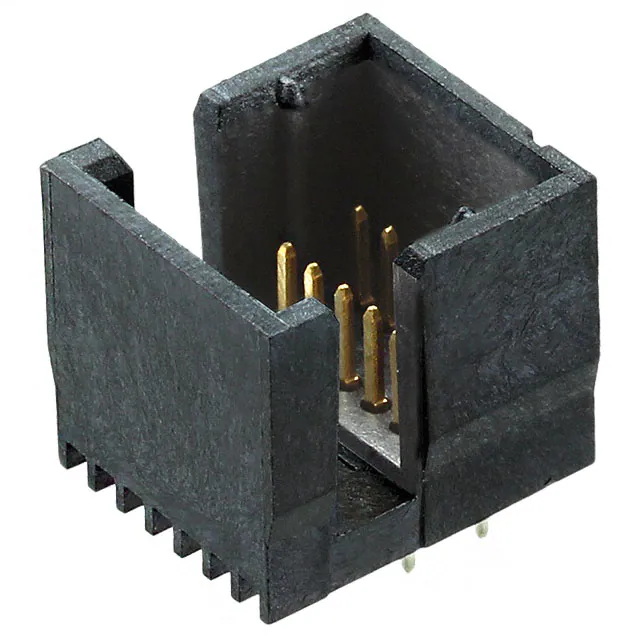

CONN HEADER VERT 10POS 1.27MM
104076-1.pdf
3,026
3,026 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mated Stacking Heights
-
Series
AMPMODU System 50
Product Status
Active
Contact Length - Post
0.100" (2.54mm)
Package
Tube
Overall Contact Length
-
Insulation Material
Thermoplastic
Base Product Number
104076
Pitch - Mating
0.050" (1.27mm)
Shrouding
Shrouded - 3 Wall
Material Flammability Rating
UL94 V-0
Mfr
TE Connectivity AMP Connectors
Connector Type
Header
Contact Length - Mating
0.125" (3.18mm)
Contact Finish - Post
Tin
Voltage Rating
30VAC
Row Spacing - Mating
0.100" (2.54mm)
Termination
Solder
Applications
Automotive, General Purpose, Medical, Telecommunications
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Insulation Color
Black
Number of Positions Loaded
All
Fastening Type
Push-Pull
Features
Card Slot
Number of Rows
2
Style
Board to Board or Cable
Mounting Type
Through Hole
Contact Shape
Circular
Operating Temperature
-65°C ~ 105°C
Contact Type
Male Pin
Number of Positions
10
Insulation Height
0.390" (9.91mm)
Contact Material
Copper Alloy
Ingress Protection
-
Current Rating (Amps)
-
Contact Finish Thickness - Post
150.0µin (3.81µm)
