A114850
A114850
Favorite Products
A114850
A114850

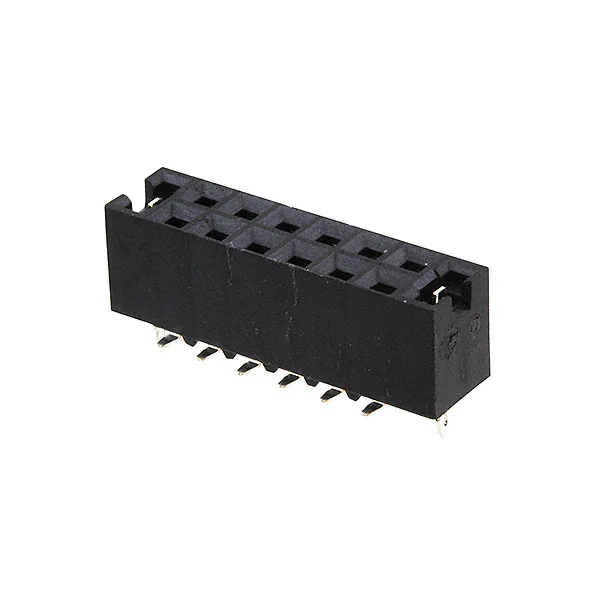

CONN RCPT 12POS 0.1 GOLD SMD
147102.pdf
10,080
10,080 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Series
AMPMODU Mod IV
Pitch - Mating
0.100" (2.54mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Current Rating (Amps)
2A
Contact Length - Post
-
Contact Type
Female Socket
Number of Positions
12
Mounting Type
Surface Mount
Insulation Height
0.265" (6.73mm)
Material Flammability Rating
-
Voltage Rating
-
Contact Shape
Square
Number of Positions Loaded
All
Termination
Solder
Base Product Number
147102
Style
Board to Board or Cable
Fastening Type
Push-Pull
Contact Finish - Post
Tin-Lead
Features
Board Lock, Pick and Place
Contact Material
Phosphor Bronze
Product Status
Obsolete
Applications
-
Package
Tube
Mfr
TE Connectivity AMP Connectors
Insulation Color
Black
Operating Temperature
-65°C ~ 125°C
Mated Stacking Heights
-
Insulation Material
Polyester, Glass Filled
Contact Finish Thickness - Post
150.0µin (3.81µm)
Connector Type
Receptacle, Bottom or Top Entry
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Mating
Gold
Ingress Protection
-
