A114761
A114761
Favorite Products
A114761
A114761

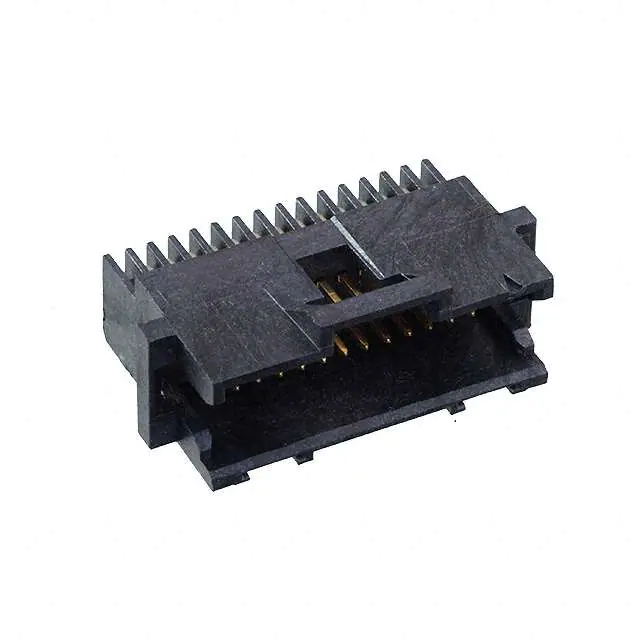

CONN HEADER R/A 26POS 1.27MM
104069-1.pdf
3,005
3,005 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Overall Contact Length
-
Applications
Automotive, General Purpose, Medical, Telecommunications
Connector Type
Header
Number of Positions
26
Number of Rows
2
Contact Finish - Post
Tin-Lead
Operating Temperature
-65°C ~ 105°C
Insulation Color
Black
Mated Stacking Heights
-
Base Product Number
104069
Pitch - Mating
0.050" (1.27mm)
Contact Length - Post
0.100" (2.54mm)
Contact Material
Copper Alloy
Material Flammability Rating
UL94 V-0
Series
AMPMODU System 50
Number of Positions Loaded
All
Insulation Material
Thermoplastic
Contact Shape
Circular
Ingress Protection
-
Style
Board to Board or Cable
Contact Length - Mating
0.125" (3.18mm)
Features
Board Guide
Current Rating (Amps)
-
Row Spacing - Mating
0.100" (2.54mm)
Fastening Type
Latch Holder
Contact Finish - Mating
Gold
Contact Finish Thickness - Post
150.0µin (3.81µm)
Mfr
TE Connectivity AMP Connectors
Package
Tube
Product Status
Active
Mounting Type
Through Hole, Right Angle
Termination
Solder
Insulation Height
0.290" (7.37mm)
Contact Type
Male Pin
Shrouding
Shrouded - 2 Wall
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Voltage Rating
30VAC
