A114168
A114168
Favorite Products
A114168
A114168

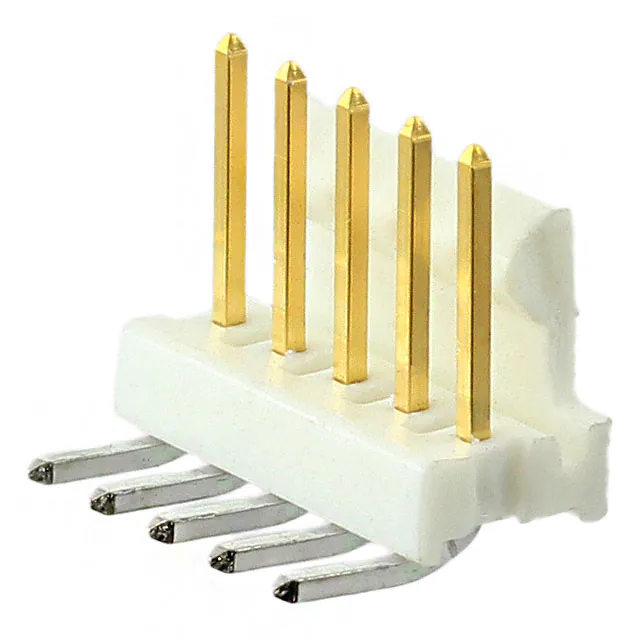

CONN HEADER R/A 5POS 2.54MM
641127_Dwg.pdf
10,100
10,100 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mated Stacking Heights
-
Contact Finish - Mating
Gold
Pitch - Mating
0.100" (2.54mm)
Contact Length - Post
0.140" (3.56mm)
Insulation Material
Thermoplastic
Termination
Solder
Contact Length - Mating
0.295" (7.49mm)
Contact Material
Copper Alloy
Features
-
Material Flammability Rating
UL94 V-0
Insulation Color
Natural
Shrouding
Shrouded - 1 Wall
Series
MTA-100
Number of Rows
1
Number of Positions Loaded
All
Insulation Height
0.225" (5.72mm)
Contact Finish Thickness - Post
150.0µin (3.81µm)
Mfr
TE Connectivity AMP Connectors
Package
Bulk
Contact Type
Male Pin
Row Spacing - Mating
-
Applications
General Purpose
Style
Board to Cable/Wire
Fastening Type
Friction Lock
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Operating Temperature
-55°C ~ 105°C
Connector Type
Header
Number of Positions
5
Mounting Type
Through Hole, Right Angle
Overall Contact Length
-
Current Rating (Amps)
Varies by Wire Gauge
Voltage Rating
250VAC
Product Status
Obsolete
Contact Finish - Post
Tin
Ingress Protection
-
Base Product Number
641127
Contact Shape
Square
