A112930
A112930
Favorite Products
A112930
A112930

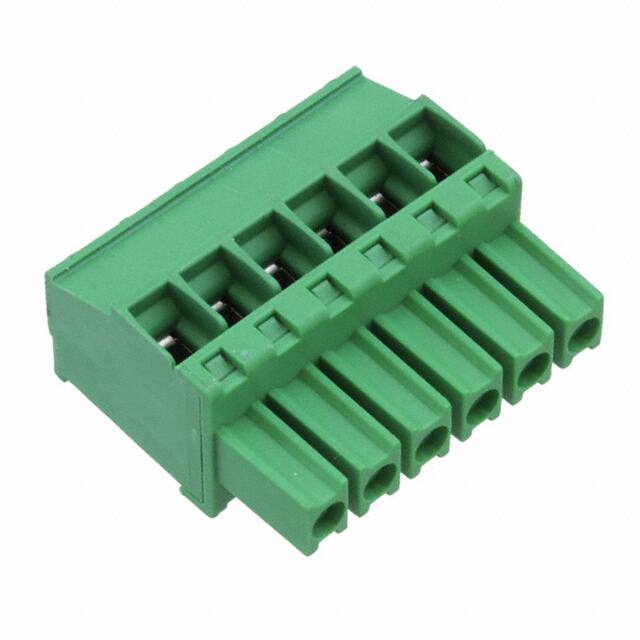

TERM BLOCK PLUG 6POS 3.5MM
1986371-3.pdf
10,070
10,070 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Positions Per Level
6
Number of Levels
1
Plug Wire Entry
270°
Header Orientation
-
Features
Side Stacking
Material Flammability Rating
UL94 V-0
Base Product Number
1986371
Number of Positions
6
Pitch
0.138" (3.50mm)
Housing Material
Polyamide (PA66), Nylon 6/6
Termination Style
Screw - Rising Cage Clamp
Current - UL
11 A
Insulation Height
0.756" (19.20mm)
Torque - Screw
-
Product Status
Active
Wire Gauge or Range - AWG
14-30 AWG
Contact Mating Finish
Tin
Contact Material
Phosphor Bronze
Mounting Type
Free Hanging (In-Line)
Current - IEC
-
Screw Size
M2
Contact Tail Length
-
Mfr
TE Connectivity AMP Connectors
Type
Plug, Female Sockets
Wire Gauge or Range - mm²
0.05-2mm²
Series
-
Package
Bulk
Voltage - UL
300 V
Color
Green
Operating Temperature
-40°C ~ 110°C
Ingress Protection
-
Wire Strip Length
-
