A108962
A108962
Favorite Products
A108962
A108962

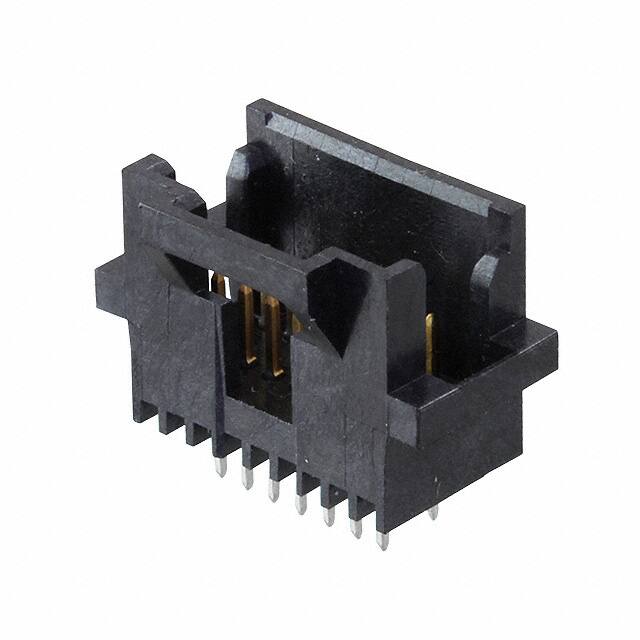

CONN HEADER VERT 14POS 1.27MM
5-104068-2.pdf
3,012
3,012 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Material Flammability Rating
UL94 V-0
Number of Positions Loaded
All
Contact Shape
Circular
Contact Type
Male Pin
Pitch - Mating
0.050" (1.27mm)
Shrouding
Shrouded - 2 Wall
Applications
Automotive, General Purpose, Medical, Telecommunications
Package
Tube
Overall Contact Length
-
Operating Temperature
-65°C ~ 105°C
Fastening Type
Latch Holder
Insulation Height
0.390" (9.91mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Material
Copper Alloy
Ingress Protection
-
Current Rating (Amps)
-
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Style
Board to Board or Cable
Contact Finish - Post
Tin-Lead
Insulation Color
Black
Connector Type
Header
Contact Length - Post
0.100" (2.54mm)
Insulation Material
Thermoplastic
Voltage Rating
30VAC
Mated Stacking Heights
-
Base Product Number
104068
Mfr
TE Connectivity AMP Connectors
Contact Finish - Mating
Gold
Series
AMPMODU System 50
Number of Positions
14
Features
-
Contact Finish Thickness - Post
150.0µin (3.81µm)
Product Status
Active
Mounting Type
Through Hole
Termination
Solder
Contact Length - Mating
0.125" (3.18mm)
