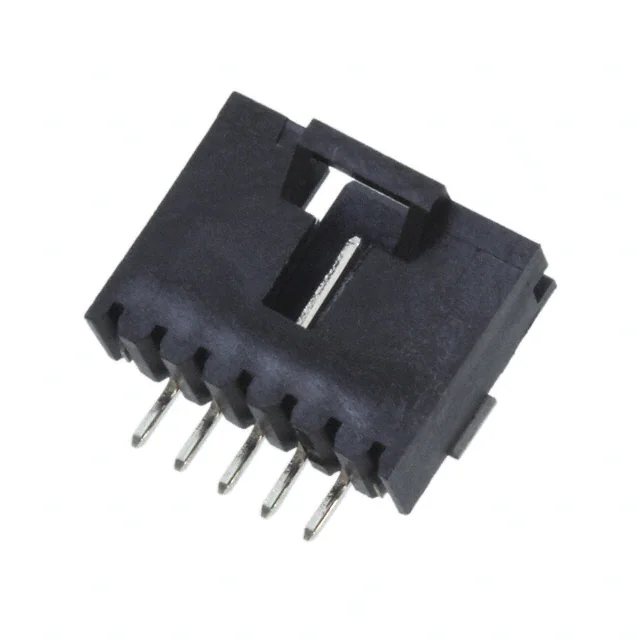

A108802TR
A108802TR
Favorite Products
A108802TR
A108802TR
CONN HEADER SMD R/A 5POS 2.54MM
147324-1.pdf
10,090
10,090 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Package
Tape & Reel (TR)^^Cut Tape (CT)^^Digi-Reel®
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Style
Board to Board or Cable
Contact Length - Post
-
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Insulation Height
0.200" (5.08mm)
Contact Shape
Square
Mfr
TE Connectivity AMP Connectors
Number of Rows
1
Contact Finish - Mating
Tin-Lead
Insulation Material
Thermoplastic
Contact Finish Thickness - Post
100.0µin (2.54µm)
Number of Positions Loaded
All
Termination
Solder
Contact Finish - Post
Tin-Lead
Operating Temperature
-65°C ~ 105°C
Insulation Color
Black
Shrouding
Shrouded - 4 Wall
Mounting Type
Surface Mount, Right Angle
Material Flammability Rating
UL94 V-0
Series
AMPMODU MTE
Connector Type
Header
Contact Length - Mating
0.230" (5.84mm)
Features
Board Lock, Keying Slot, Solder Retention
Current Rating (Amps)
3A
Mated Stacking Heights
-
Applications
Automotive, General Purpose, Medical, Telecommunications
Base Product Number
147324
Contact Type
Male Pin
Product Status
Active
Number of Positions
5
Fastening Type
Latch Holder
Ingress Protection
-
Voltage Rating
-
Row Spacing - Mating
-
Overall Contact Length
-
